U/H Electrical Center

FUSE, RELAY and CURCUIT BREAKERS APPLICATION and ID

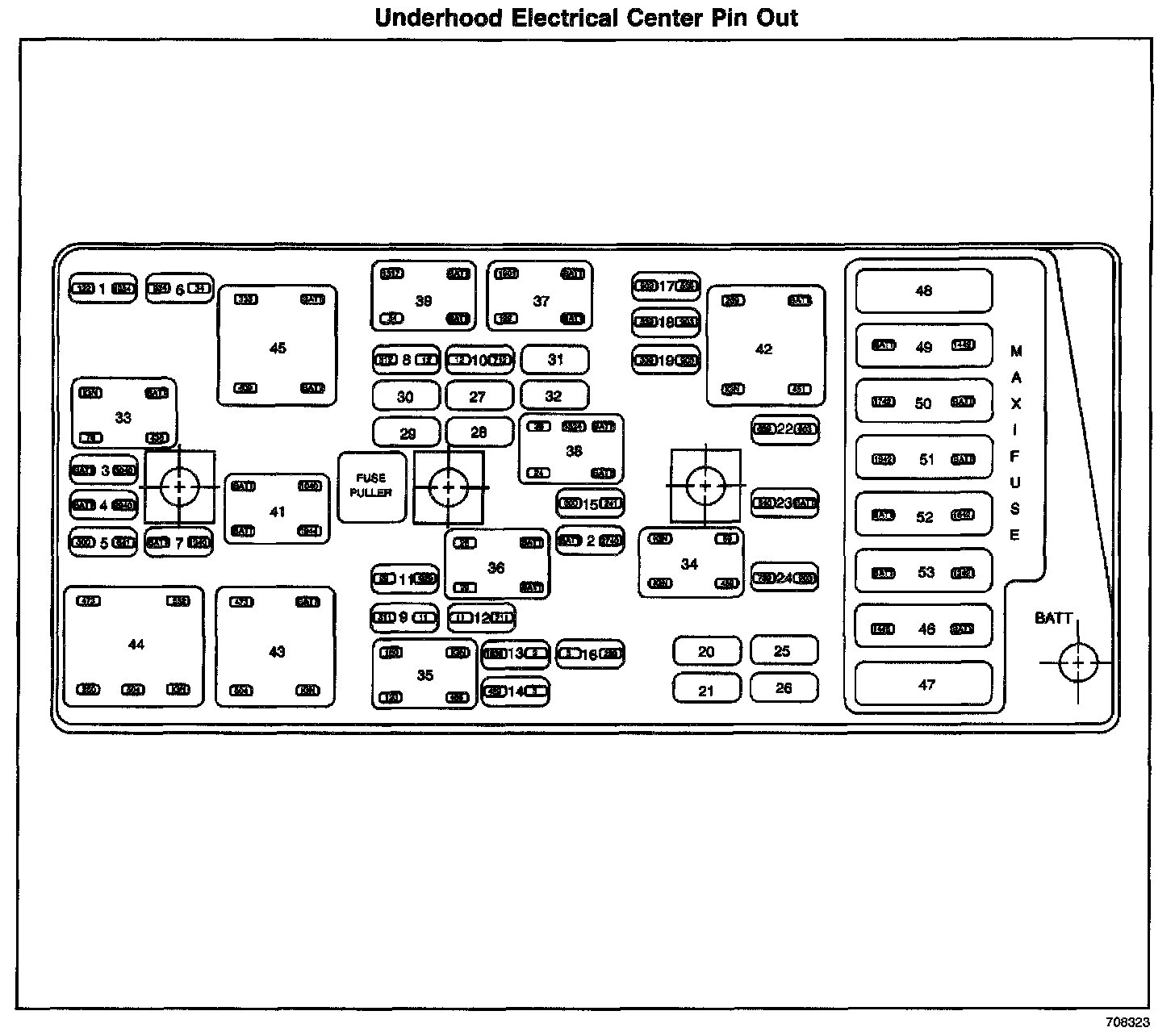

Underhood Electrical Center Pin Out:

1. Rear Fog Lamp
2. Approach
3. Right Headlamp Motor
4. Left Headlamp Motor
5. Anti-Lock Brakes, Selective Real Time Damping (SRTD)
6. Fog Lamp
7. Selective Real Time Damping (SRTD) Relay
8. Headlamp Low Beam Right
9. Headlamp High Beam Right
10. Headlamp Low Beam Left
11. Horn
12. Headlamp High Beam Left
13. Fuel Pump
14. Cooling Fan - Ignition 3
15. Oxygen Sensor
16. Powertrain Control Module
17. Throttle Control
18. Injector 2
19. Engine Ignition
20. Blank
21. Blank
22. Injector 1
23. Powertrain Control Module
24. Air Conditioning
25. Blank
26. Blank
27. Spare
28. Spare
29. Spare
30. Spare
31. Spare
32. Spare
33. Micro Relay - Air Pump
34. Micro Relay - Air Conditioner and Clutch
35. Micro Relay - Fuel Pump
36. Micro Relay - Horn
37. Micro Relay - Rear Fog Lamp
38. Micro Relay - Back-Up Lamps
39. Micro Relay - Fog Lamp
40. Blank
41. Micro Relay - Selective Real Time Damping (SRTD)
42. Mini Relay - Ignition
43. Mini Relay - Cooling Fan 2
44. Mini Relay - Cooling Fan 3
45. Mini Relay - Cooling Fan 1
46. Maxifuse - Cooling Fan 2
47. Blank
48. Blank
49. Maxifuse - Cooling Fan 1
50. Maxifuse - Air Pump
51. Blank
52. Maxifuse - Anti-Lock Brakes
53. Maxifuse - Anti-Lock Brakes, Selective Real Time Damping (SRTD) Electronics
54. Fuse Puller
