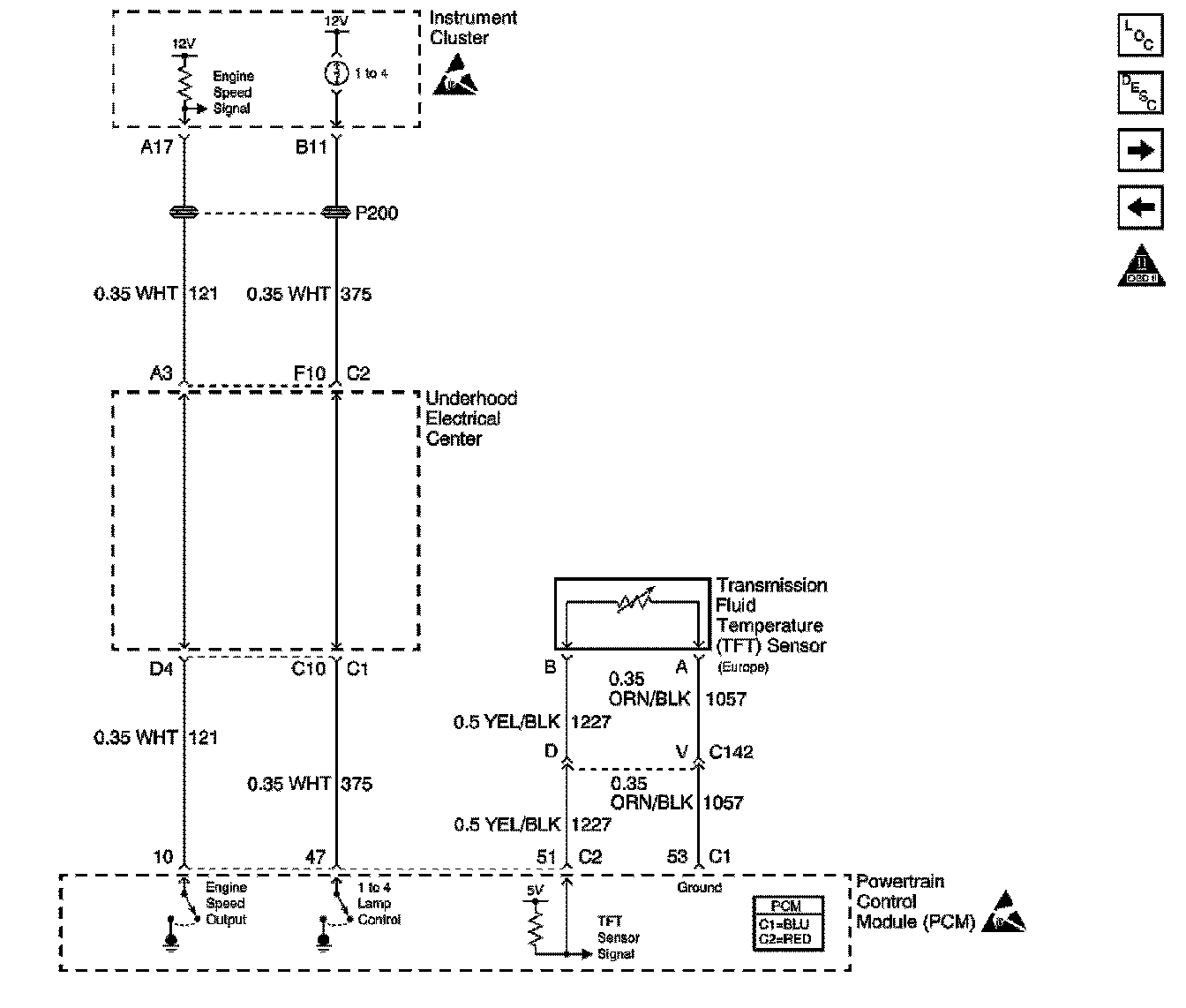

Engine Controls Diagram 18
1 to 4 Lamp Control and TFT Sensor (Manual Transmission (Europe))Next Diagram Engine Controls Diagram 19Previous Diagram Engine Controls Diagram 17Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
Locations
