Air Solenoid Valve Replacement

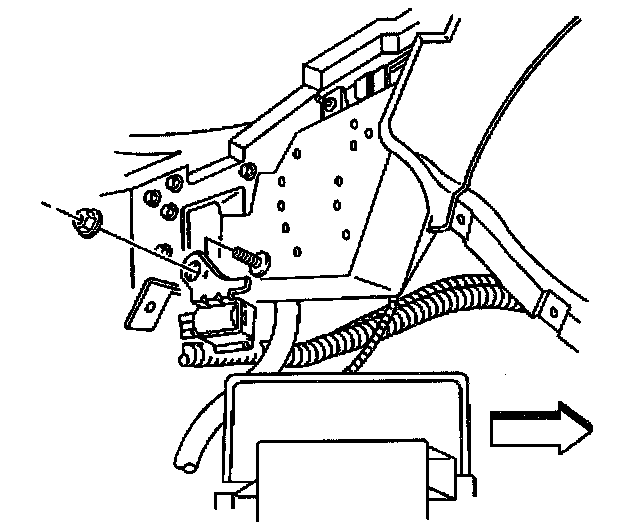

REMOVAL PROCEDURE




1. Remove the right wheelhouse filler panel.
2. Remove the vacuum hoses from the AIR Solenoid Valve.
3. Remove the electrical connector from the AIR Solenoid Valve.




4. Remove the AIR Solenoid Valve retaining nut.
5. Remove the AIR Solenoid Valve.

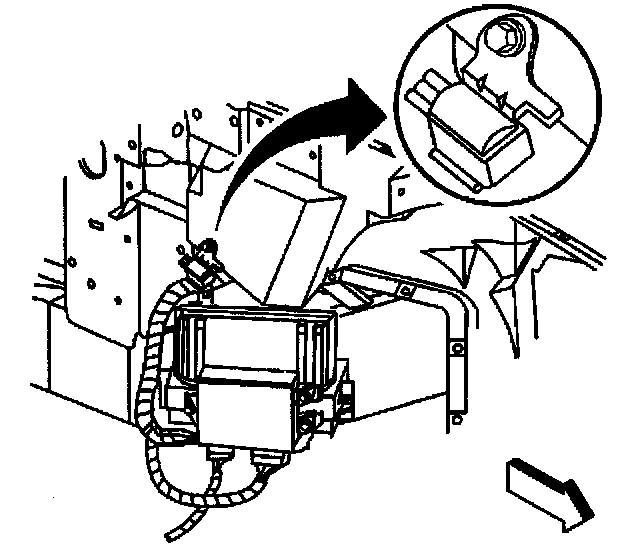

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Install the AIR Solenoid Valve.
2. Install the AIR Solenoid Valve retaining nut.

Tighten
Tighten the AIR Solenoid Valve retaining nut to 7 N.m (62 lb in).




3. Install the vacuum hoses to the AIR Solenoid Valve.
4. Install the electrical connector to the AIR Solenoid Valve.
5. Install the right wheelhouse tiller panel.
