Cruise Control Cable Replacement (3800)

REMOVAL PROCEDURE

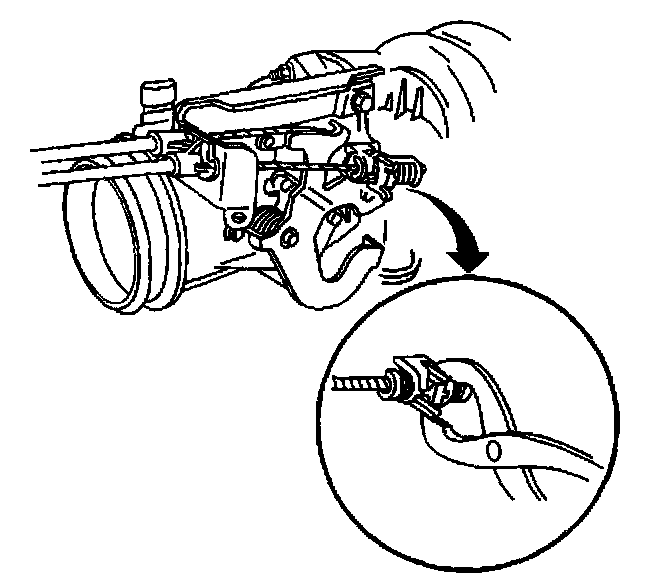

1. Remove the cruise control from the throttle lever and the accelerator control cable bracket.

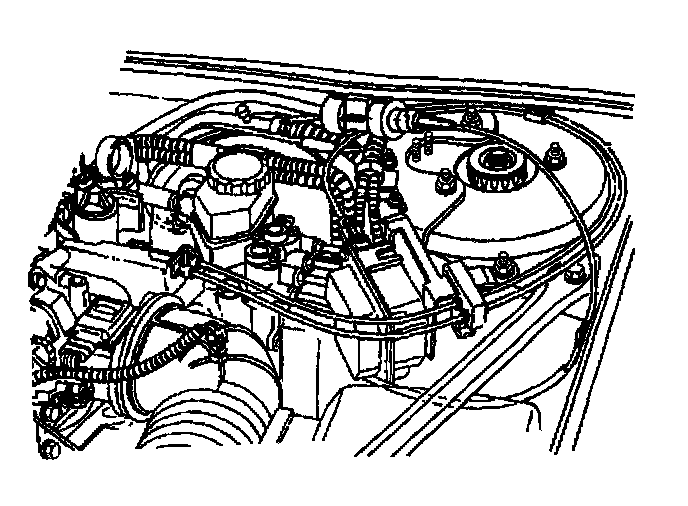

2. Remove the cruise control cable from the cruise control cable retainers.
3. Remove the cruise control cable from the cruise control module cable strap.




4. Remove the cruise control cable from the cruise control module by rotating the cruise control cable counterclockwise.
5. Remove the control cable from the engine.

INSTALLATION PROCEDURE




1. Position the cruise control cable to the engine.




2. Install the cruise control cable to the module by rotating the cruise control cable clockwise.
3. Install the cruise control cable to the cruise control cable retainers.

IMPORTANT: Ensure the module strap is not twisted during installation of the cable.




4. Install the cruise control cable to the cruise control module cable strap.




5. Install the cruise control cable to the throttle lever and the accelerator control cable bracket.
6. Adjust the cruise control cable.
