Impala V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Fluid Diagrams
>>
Engine Lubrication
Engine Lubrication

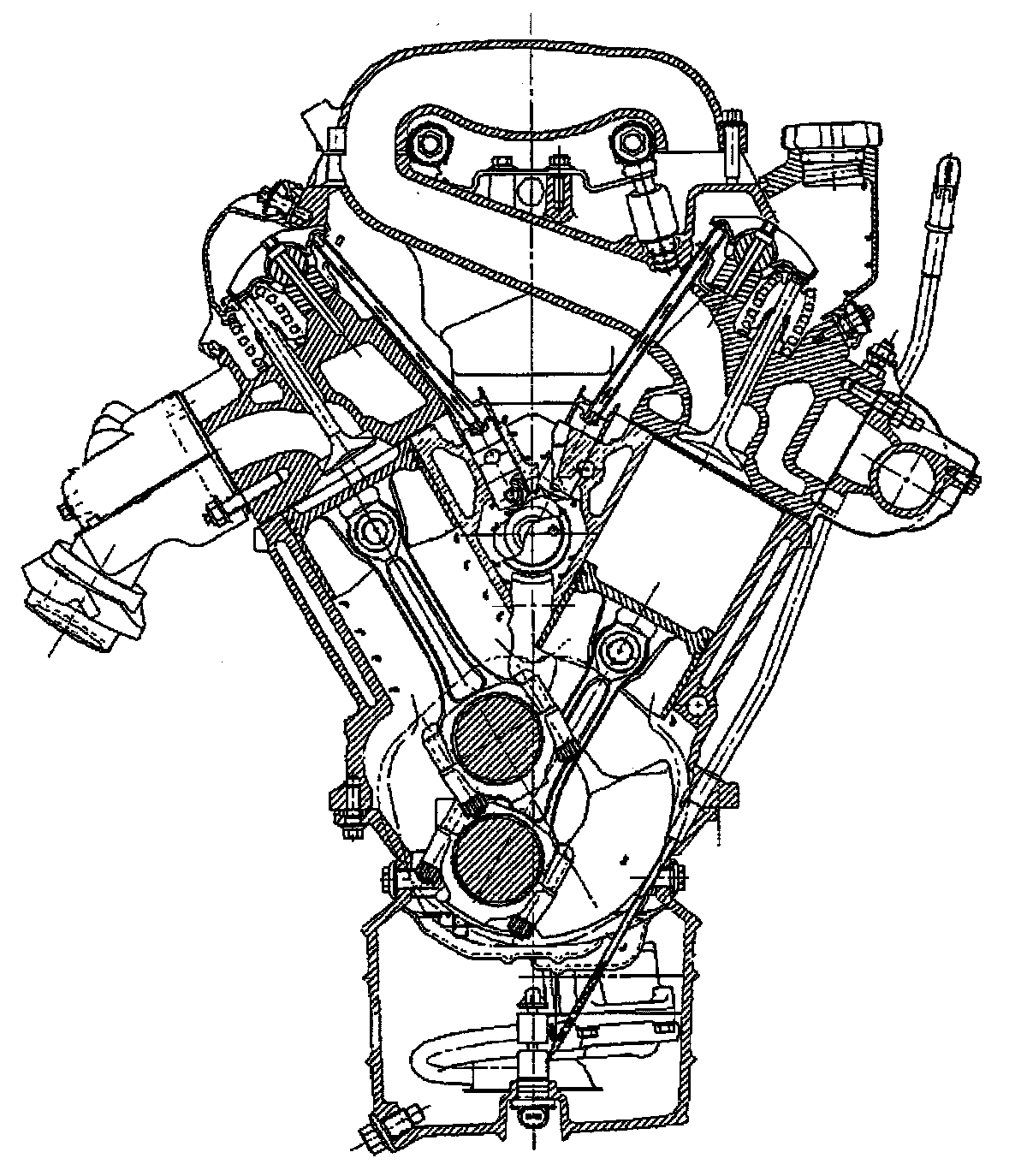

Front View:
Rear View:

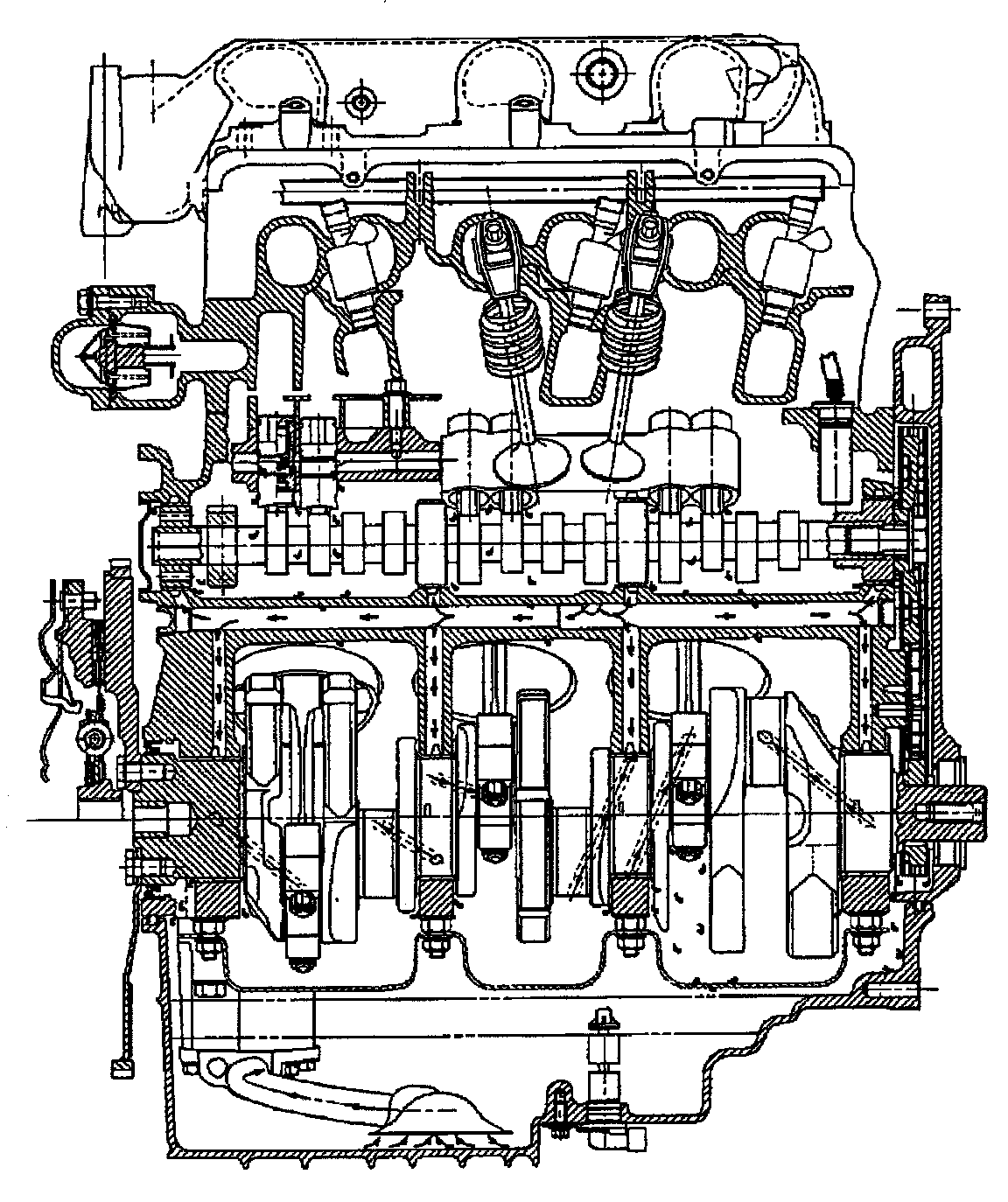

Right View:
