Window Channel Retainer Replacement - Rear Door

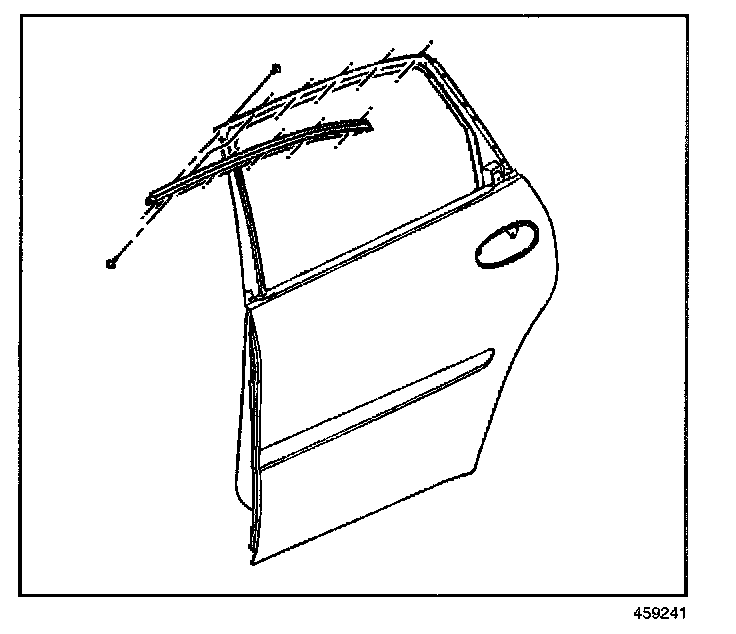

REMOVAL PROCEDURE




1. Partially remove the upper portion of the rear door frame appliques.
2. Pull downwards on the rear door window channel to gain access to the rivets.
3. Drill out the rivets.
4. Remove the forward screw to the rear window channel retainer.
5. Remove the rear window channel retainer from the rear door.

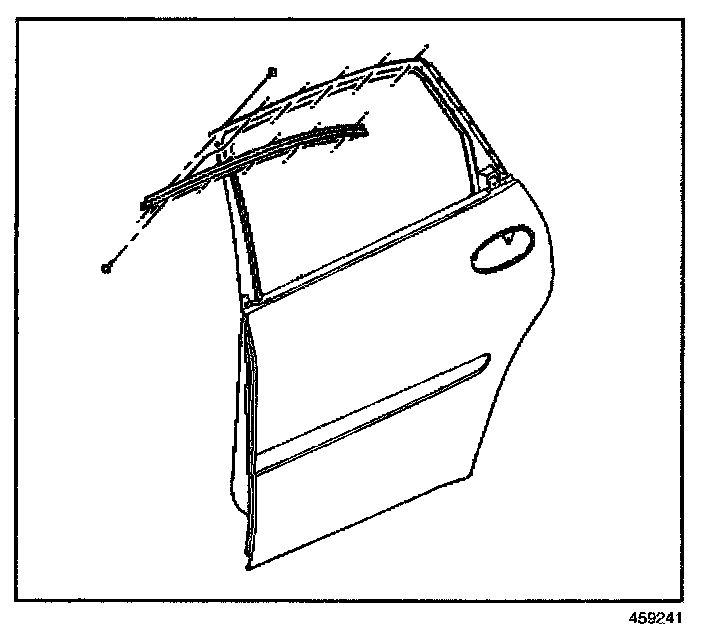

INSTALLATION PROCEDURE




1. Position the rear window weatherstrip retainer.
2. Push downwards on the rear door window channel to gain access to the rivets holes.
3. Install weather strip retainer rivets.
4. Install the rear door frame applique.
