Rear Position Sensor Replacement - Left

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the wheel and tire assembly from the vehicle. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment.
3. Disconnect the sensor harness connector from the vehicle harness connector.
4. Remove the bolt from the Real Time Damping (RTD) sensor link bracket.
5. Spread the bracket open until the bracket can be removed from the upper control arm.
6. Remove the bolts from the frame.
7. Remove the position sensor from the vehicle.


Installation Procedure





1. Install the position sensor on the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts to the frame.
^ Tighten the bolts to 12 Nm (106 inch lbs.).

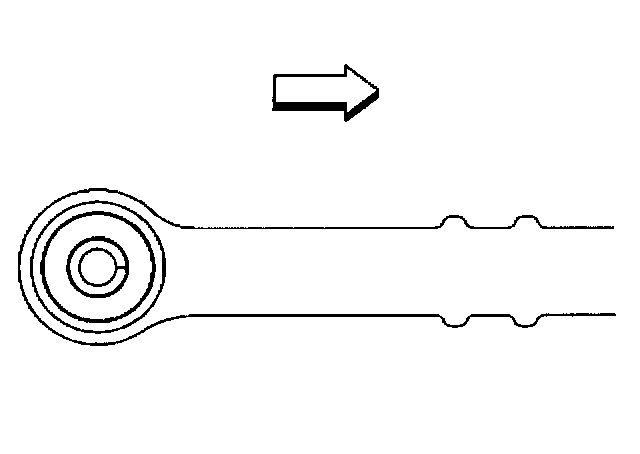

3. Close the bracket around the upper control arm making sure the bracket rests between the locating stops.
4. Install the bolt.
^ Tighten the bolt to 25 Nm (18 ft. lbs.).
5. Connect the sensor harness connector to the vehicle harness connector.
6. Install the wheel and tire assembly to the vehicle. Refer to Tire and Wheel Removal and Installation in Wheels, Tires and Alignment. Lower the vehicle.
