Front Fender Insulator Replacement

Front Fender Insulator Replacement

Removal Procedure





1. Remove the front fender liner. Refer to Front Fender Liner Replacement (Service and Repair) .

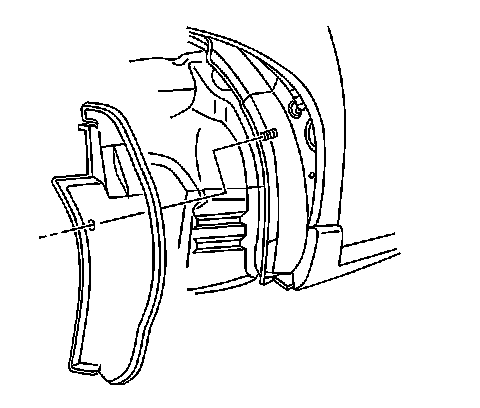

2. Remove the front fender insulator from the inner fender by pulling the front fender insulator from the stud.



Installation Procedure


Important: The front fender insulator must be kept near the flange of the front fender wheel opening to avoid interference with the front door edge.






1. Position the front fender insulator into the inner fender opening.
2. Install the front fender insulator over the stud in front of the hinge pillar applying sufficient pressure to secure.
3. Install the front fender liner. Refer to Front Fender Liner Replacement (Service and Repair) .
