A/T Inline Harness Connector End View
A/T Inline Harness Connector End View

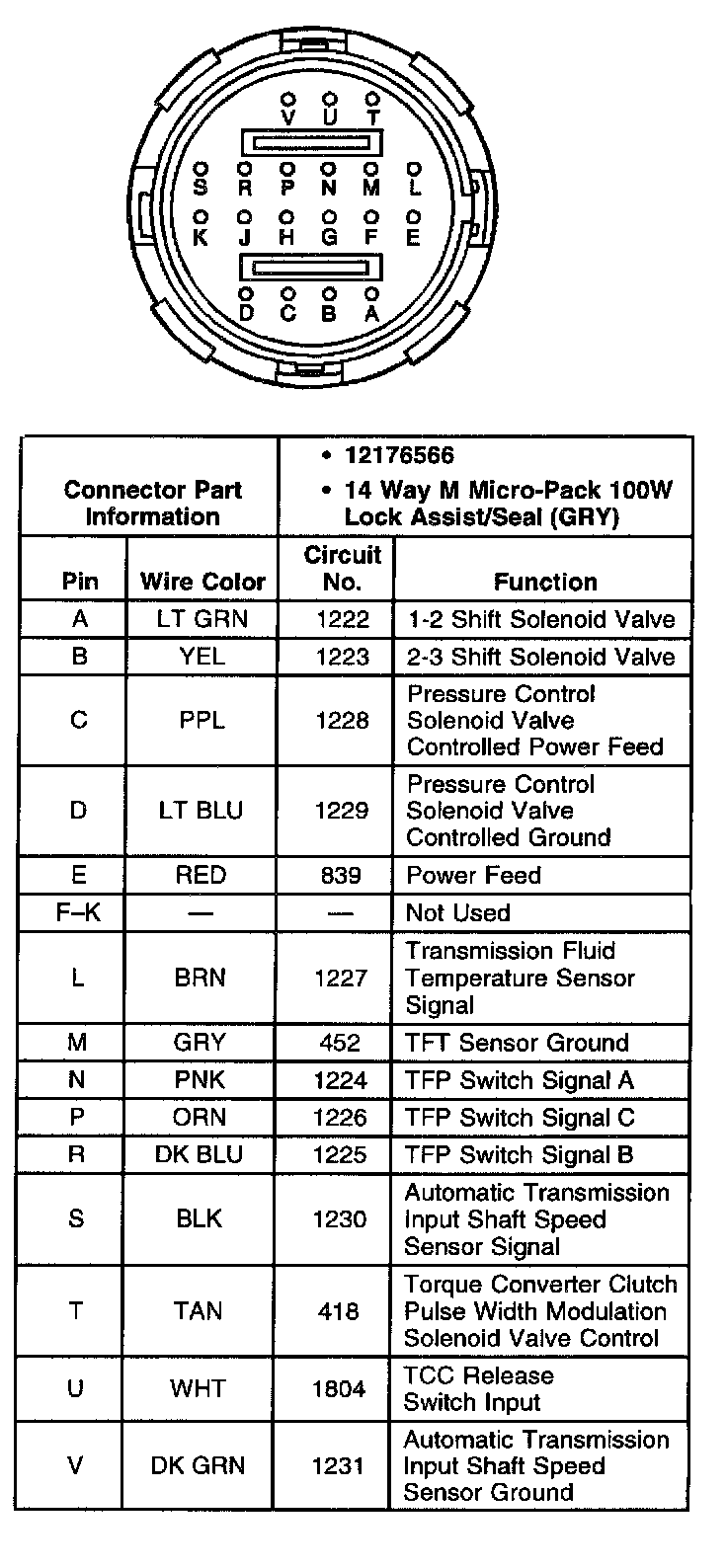

AT Inline Harness 20-way Connector, Engine Side
AT Inline Harness 20-way Connector, Transmission Side
