Compressor Clutch Relay: Service and Repair
REMOVAL PROCEDURE 1.
Remove the right diagonal brace.
2.

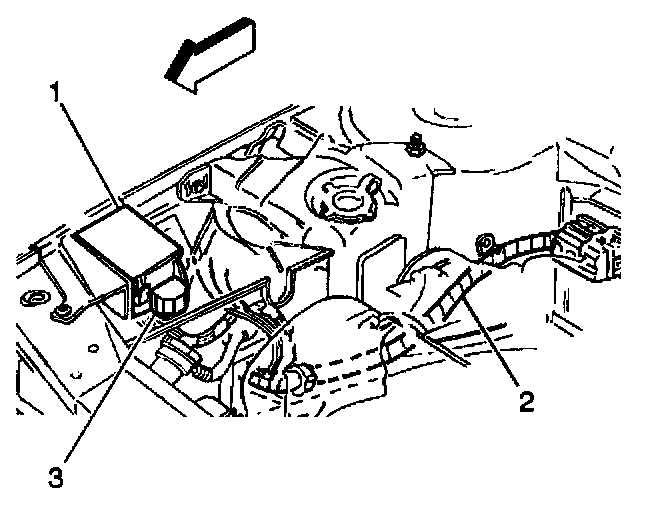

Remove the accessory wiring junction block cover (1).
3.

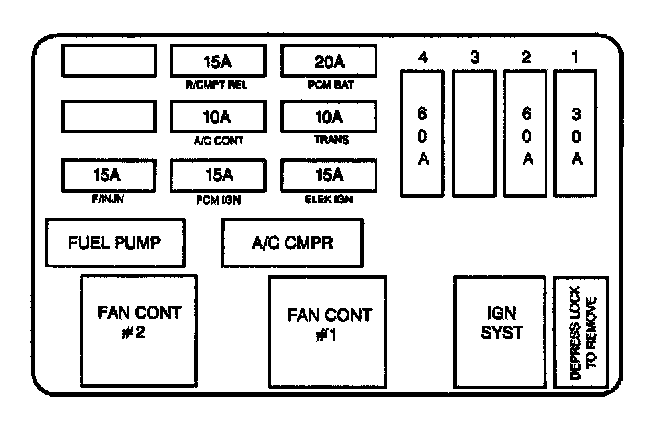

Remove the compressor control relay (A/C CMPR) from the electrical center.
INSTALLATION PROCEDURE 1.
Install the compressor control relay (A/C CMPR) into the electrical center.
2.
Install the accessory wiring junction block cover (1).
3.
Install the right diagonal brace.
