Lumina V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Right Front Engine Compartment
Right Front Engine Compartment

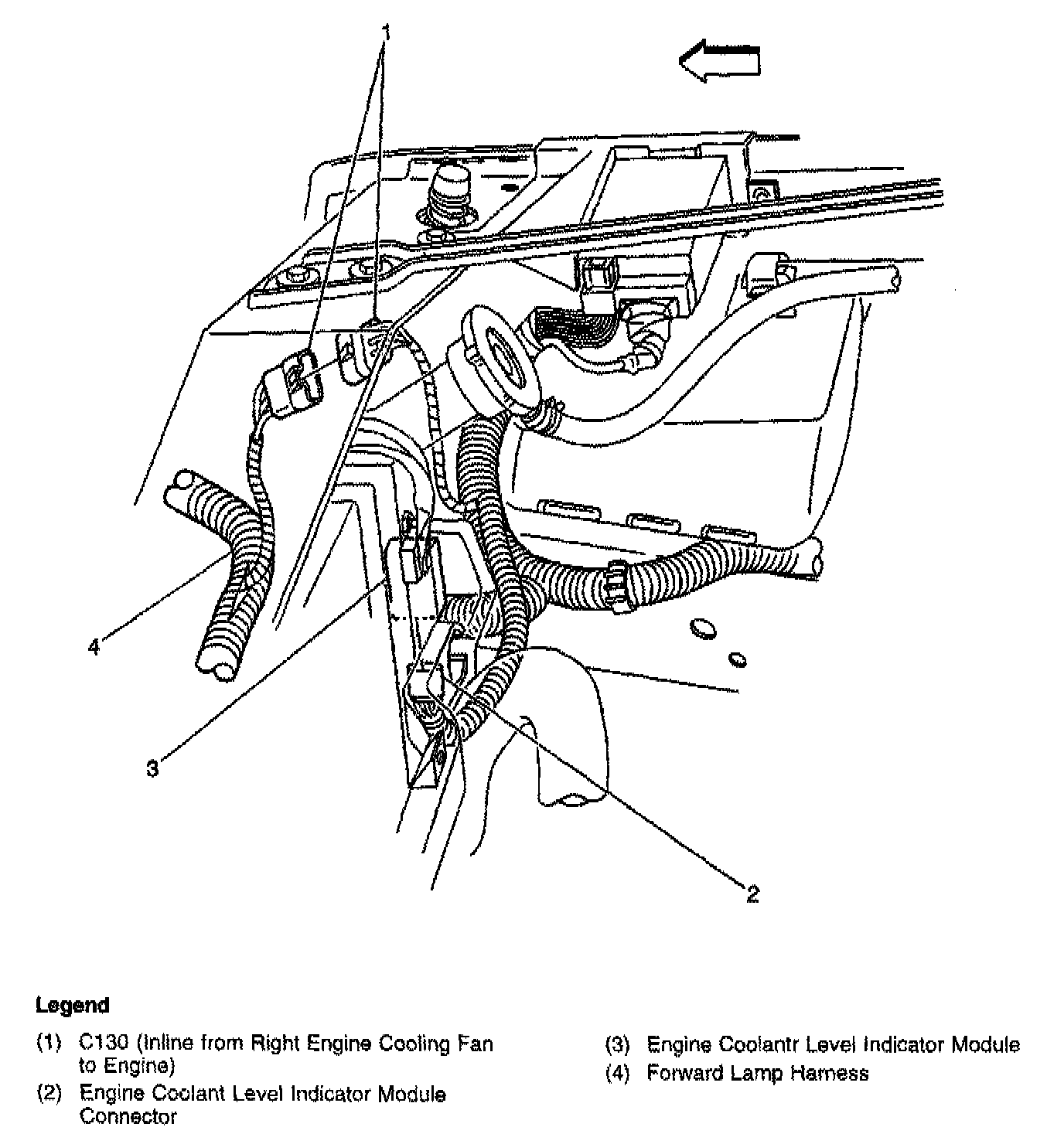

Harness Routing Views (Right Front Side Of Engine Compartment):
