Front Camber Adjustment

- Tools Required
- J 36892 Strut Alignment Template

Important: Do not over-extend the drive axle. Do not lift the drive axle by the suspension.





1. Remove the three strut cover plate nuts.
2. Remove the strut cover plate.
3. Lift the front of the vehicle to just the point that the strut studs clear the strut tower.
4. Cover the top of the strut to catch metal filings.

Important: Paint the exposed metal.

5. Use the J 36892 to mark three holes.

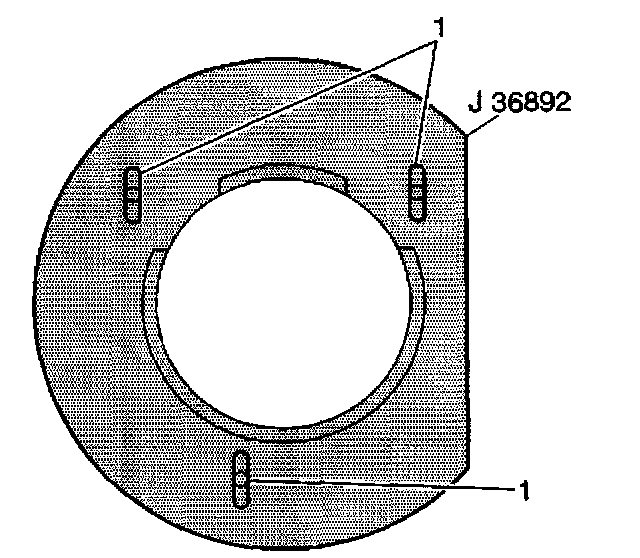

6. File the three holes as follows (1):
- File inboard or outboard of the existing hole depending upon the camber requirement.
- Do not file more than 5 mm (0.2 inch) in either direction.

Important: Check the toe after changing the camber. Refer to Front Toe Adjustment and Rear Toe Adjustment.

1. Lower the front of the vehicle.
2. Guide the strut studs into the slotted holes.
3. Install the strut cover plate.
4. Install the three front strut cover plate nuts.

Notice: Refer to Fastener Notice in Service Precautions.

5. Set the camber.

Tighten
Tighten the front strut cover plate nuts to 33 Nm (24 ft. lbs.).
