Scan Tool Does Not Communicate With Class 2 Device

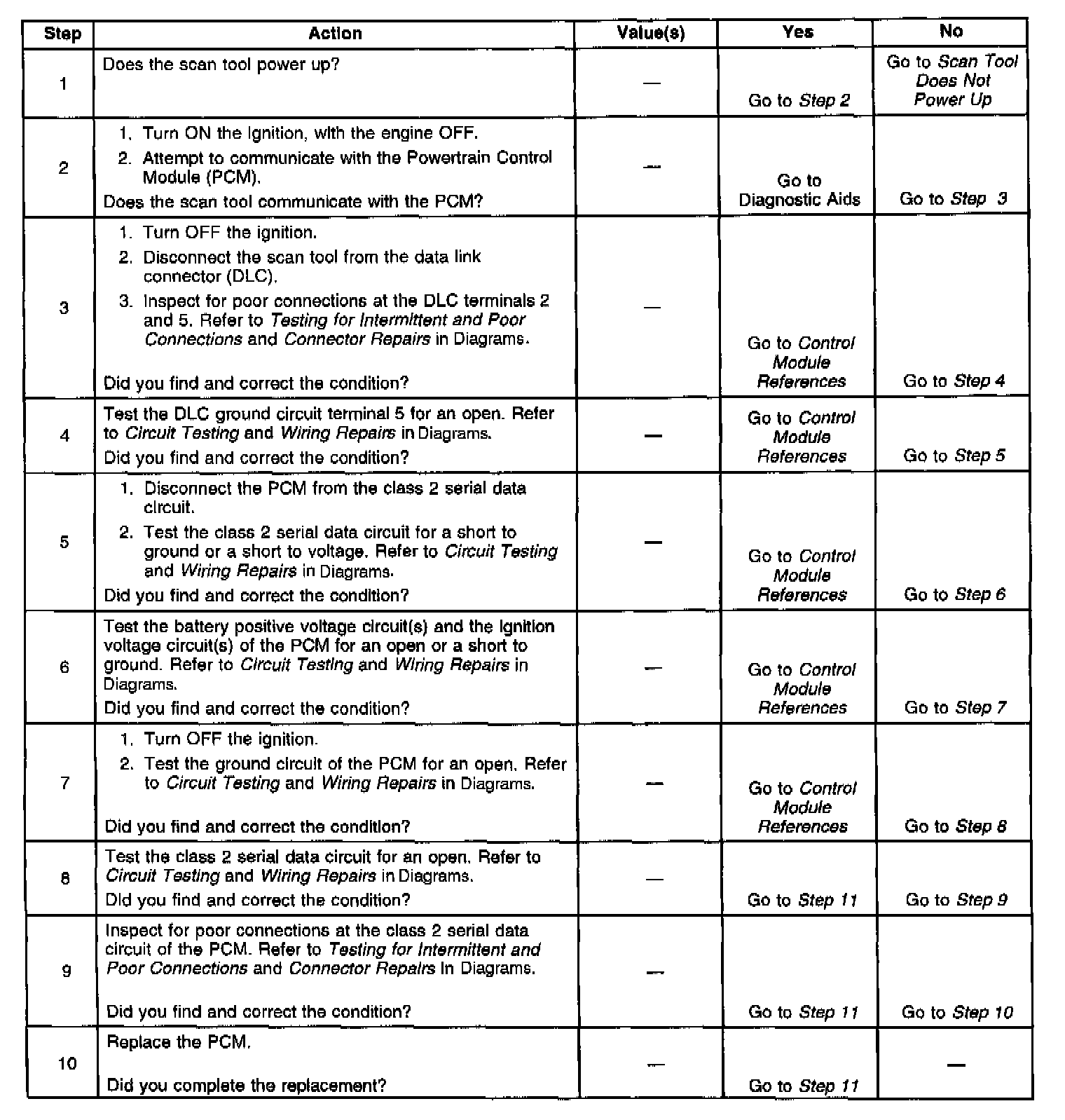

Diagnostic Chart (Part 1 Of 2):

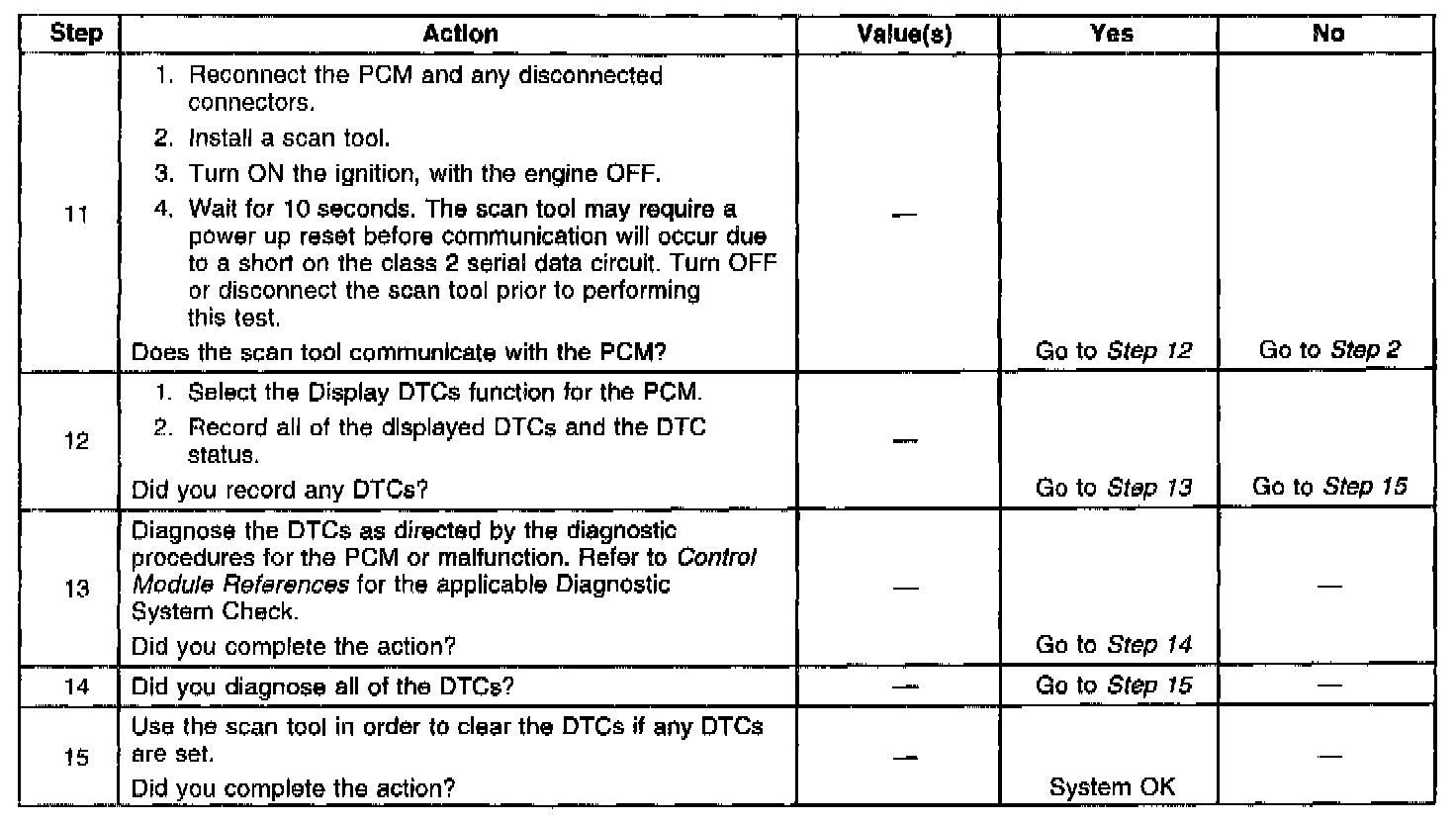

Diagnostic Chart (Part 2 Of 2):
DIAGNOSTIC AIDS The class 2 serial data circuit may have an intermittent pen, short to voltage or short to ground. Refer to Testing for Intermittent and Poor Connections.
