Rear Door Power Window Switch Replacement




REMOVAL PROCEDURE

IMPORTANT: When removing a door trim panel or switch plate, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if a flat-bladed tool, awl or metal object is used to remove the switch from the harness.

1. Remove the inside handle bezel screw.
2. Disconnect the electrical connector.

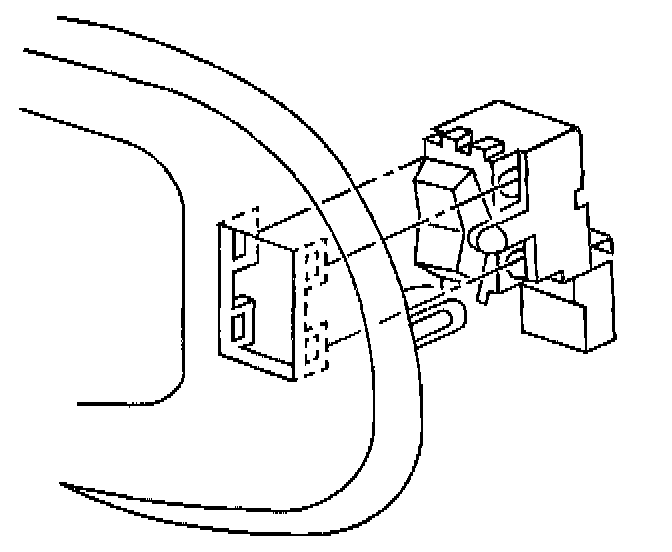

3. Remove the window switch from the bezel.

INSTALLATION PROCEDURE
1. Install the window switch to the bezel by snapping in to secure.
2. Connect the electrical connector.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the inside handle bezel screw.

Tighten
Tighten the inside handle bezel screw to 2 N.m (18 lb in).
