Washer Solvent Container Replacement

REMOVAL PROCEDURE




1. Remove the cross brace.

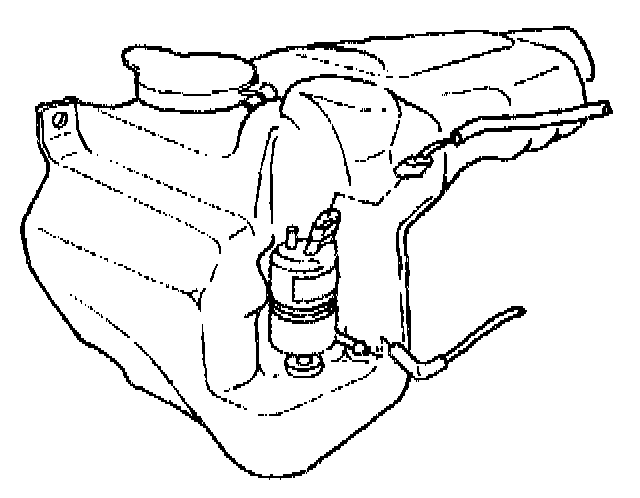

2. Disconnect the electrical connector from the washer pump.
3. Disconnect the washer hose from the washer pump.

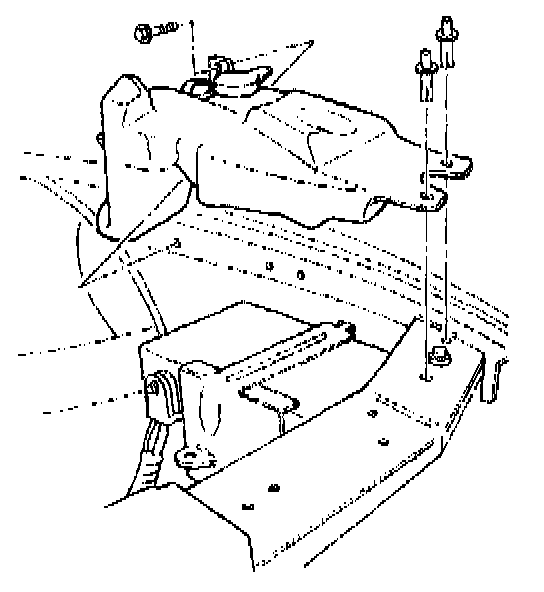

4. Remove the screw.
5. Remove the two retainers and the washer solvent container.

INSTALLATION PROCEDURE




1. Install the washer solvent container with two retainers.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the screw.

Tighten
Tighten the screw to 5 N.m (44 lb in)





3. Connect the washer hose to the washer pump.
4. Connect the electrical connector to the washer pump.
5. Install the cross brace.
