Brake Release Switch Replacement

REMOVAL PROCEDURE
1. Remove the left insulator panel.

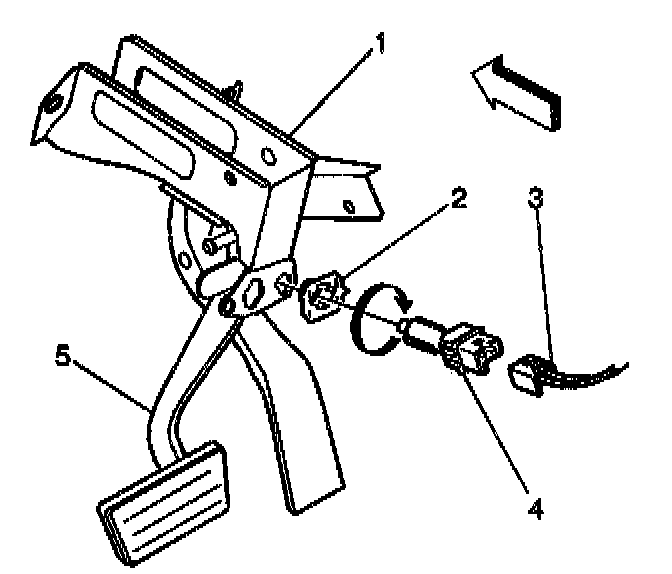

2. Disconnect the wiring harness connector (3).
3. Twist the switch counterclockwise in order to release the switch (4) from the retainer (2).
4. Pull the switch rearward in order to remove the switch from the retainer.

INSTALLATION PROCEDURE
1. Install the switch (4) into the retainer (2).
2. Slide the switch into the retainer until the switch plunger is fully depressed into the switch barrel. Orient the switch connector toward the one o'clock position.
3. Twist the switch clockwise until travel stop is reached. The switch connector will face the three o'clock position when the switch is locked.
4. Connect the wiring harness connector (3).
5. Install the left insulator panel.
