Home >> Chevrolet >> 2000 >> Malibu V6-3.1L VIN J >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Control Valve Assembly >> Testing and Inspection

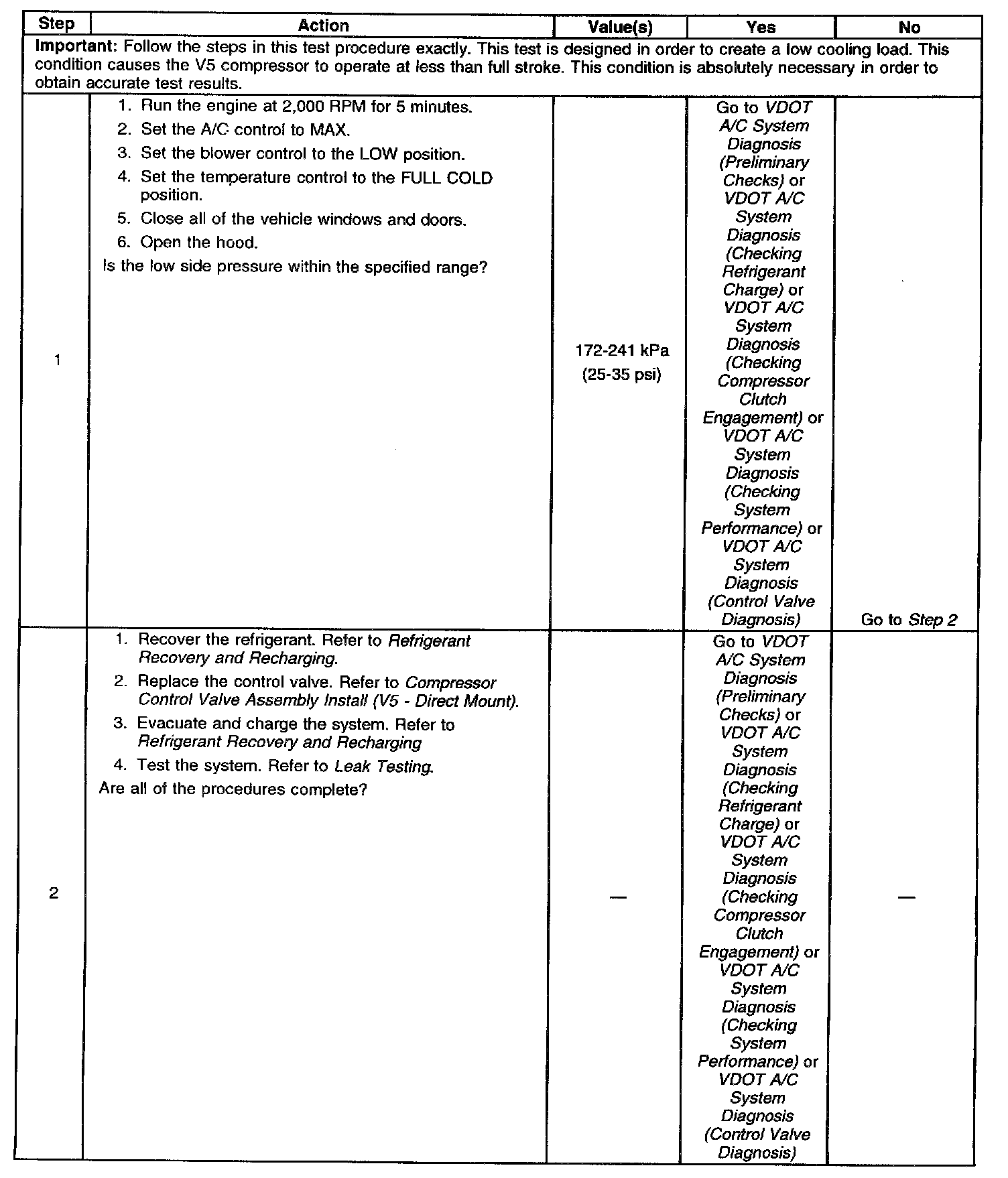

Compressor Control Valve Assembly: Testing and Inspection

Steps 1-2:
