A/C Refrigerant Pressure Sensor

A/C Refrigerant Pressure Sensor:

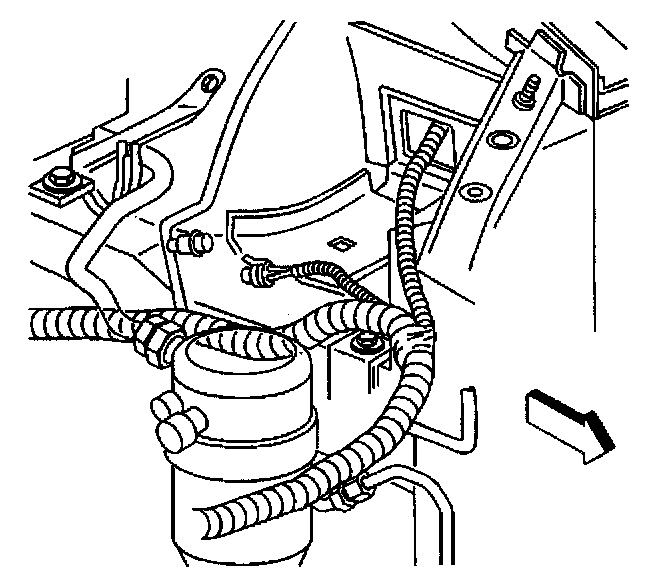

The electronic A/C refrigerant pressure sensor is mounted to the line between the condenser and the evaporator. The output to the PCM is variable and depends on the pressure inside the line. A higher pressure will result in a higher voltage out.
The PCM constantly monitors the A/C system pressure in order to achieve the following effects:
^ Disengage the A/C clutch if the pressure is above 2700 kPa (440 psi).
^ Disengage the A/C clutch if pressure is below 285 kPa (38 psi).
^ Boost the idle air control in order to compensate for the A/C load at idle.
^ Control the cooling fan operation.

A fault in the A/C refrigerant pressure sensor signal will cause DTC P0530 to set.

For more information concerning A/C operation refer to Body Control System Operation in Body Control System HVAC Compressor Controls Circuit Description in Heating and Air Conditioning.
