Body Control Module Schematics: Power Circuits, Washer Solvent Level Sensor, Seat Belt Switch, Park Brake Switch And Class 2 Data Link:

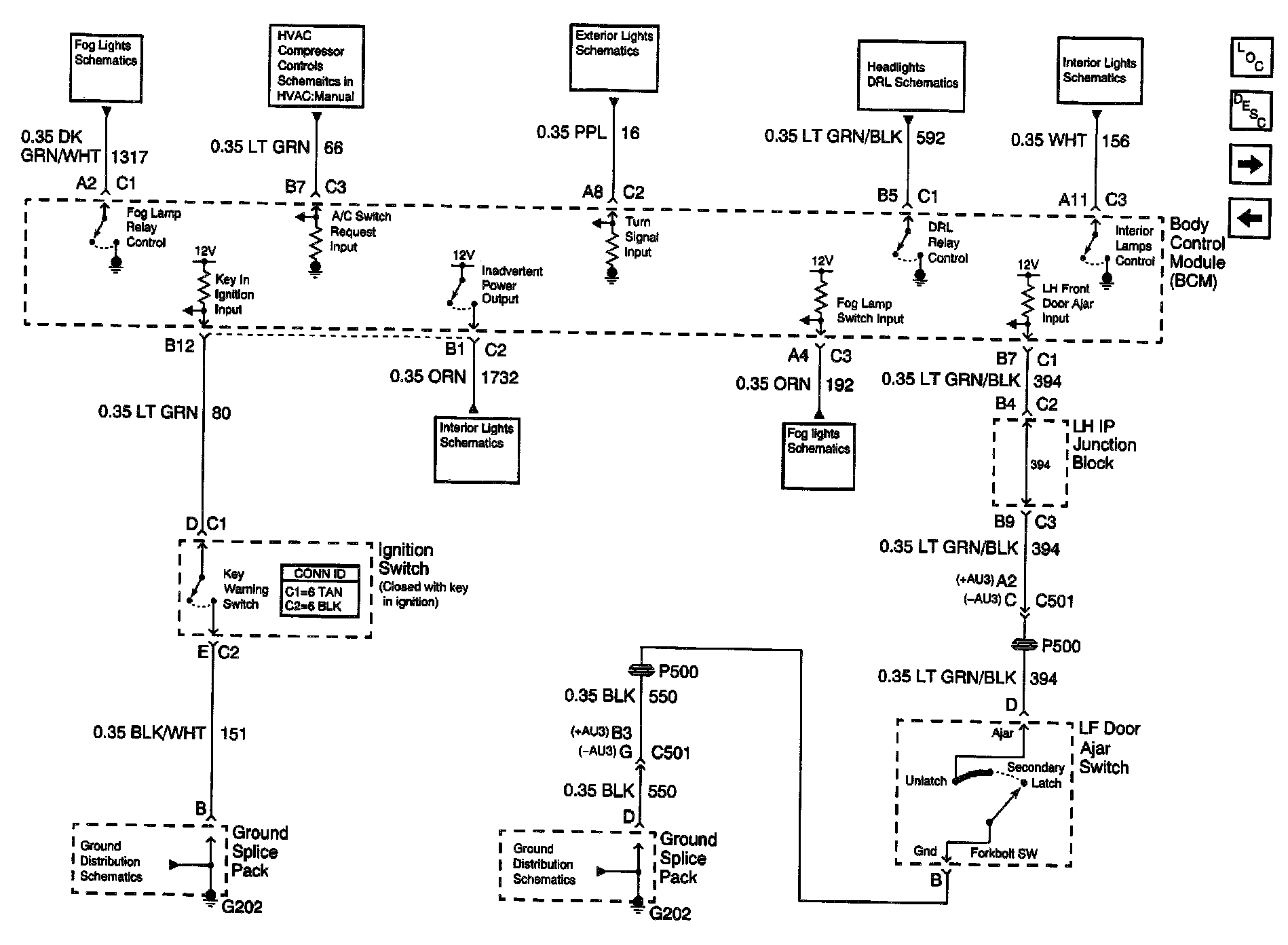

Body Control Module Schematics: Ignition Switch And Left Front Door Ajar Switch:

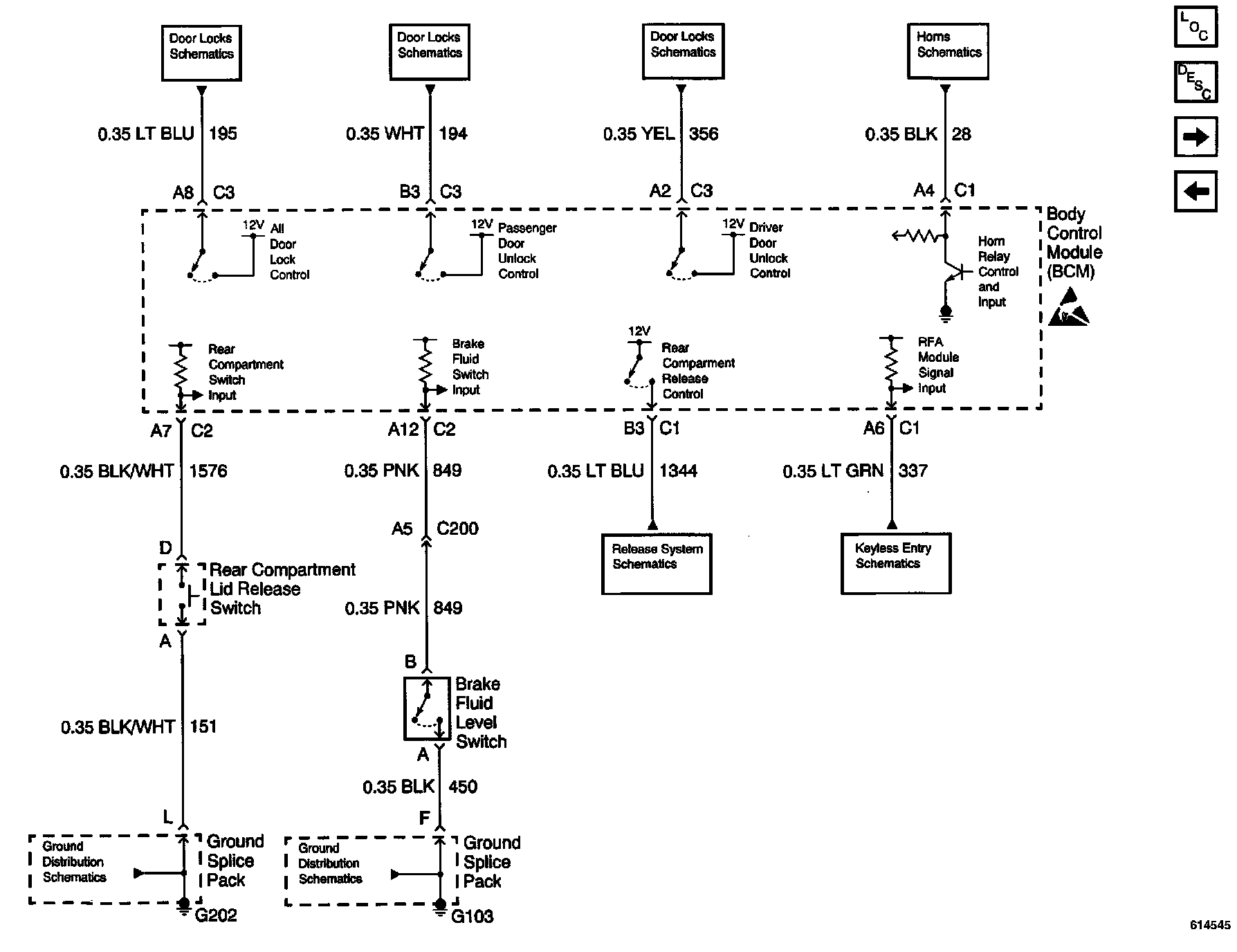

Body Control Module Schematics: Door Lock And Unlock Controls, Horn Relay Control, Rear Lid Releases Switch And Brake Fluid Level Switch:

Body Control Module Schematics: Right Rear, Left Rear, Right Front Door Ajar Switches And Ambient Light Sensor:

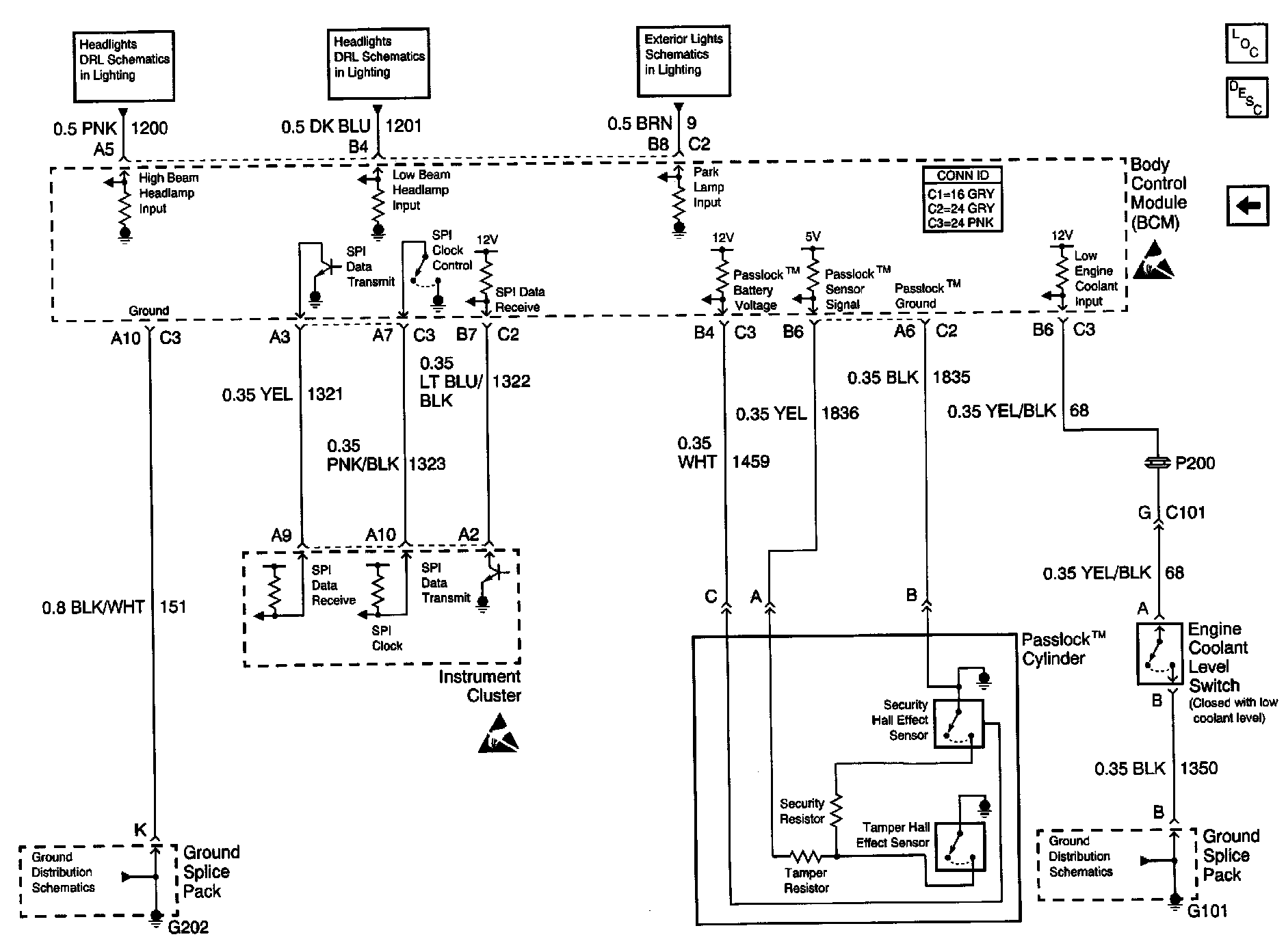

Body Control Module Schematics: Instrument Cluster, Passlock(TM) Cylinder, Lighting Inputs And Coolant Level Switch:
