Axle Shaft Assembly

This article has been updated with bulletin 03-04-18-001

AXLE NUT

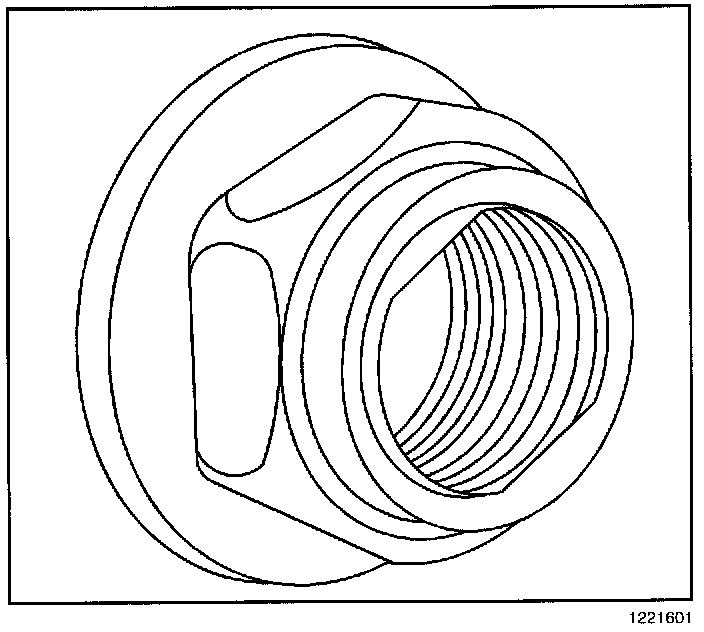

New Style Nut:

^ Tighten the NEW style nut to 235 Nm (173 ft. lbs.).

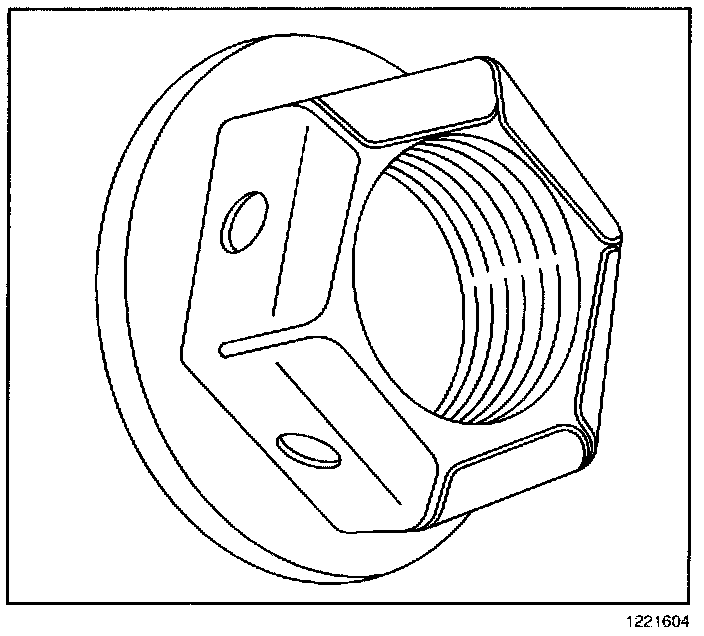

Old Style Nut:

^ Tighten the OLD style nut to 385 Nm (284 ft. lbs.).
