9. Water Pump Removal

Important: Before removing the water pump, unload the drive belt tensioner, and remove the drive belt.

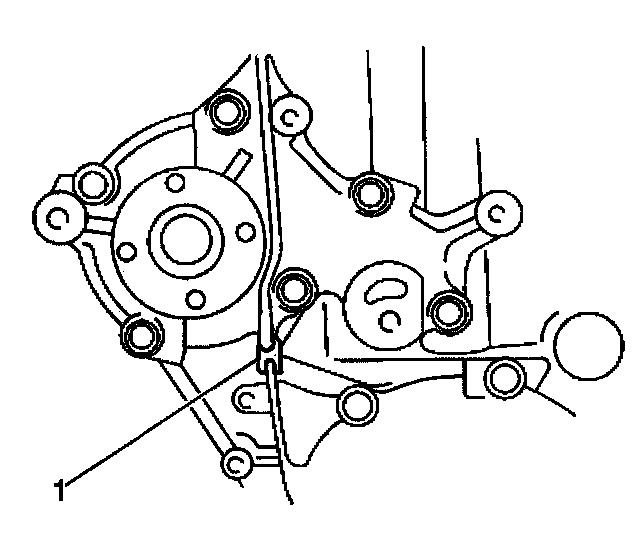

1. Remove the water pump housing bolts and the nuts.





2. Remove the water pump and the rubber seal (1).
