Starting Circuit

Starting Circuit:

Two types of starter motors are utilized depending upon transaxle usage (manual or automatic).

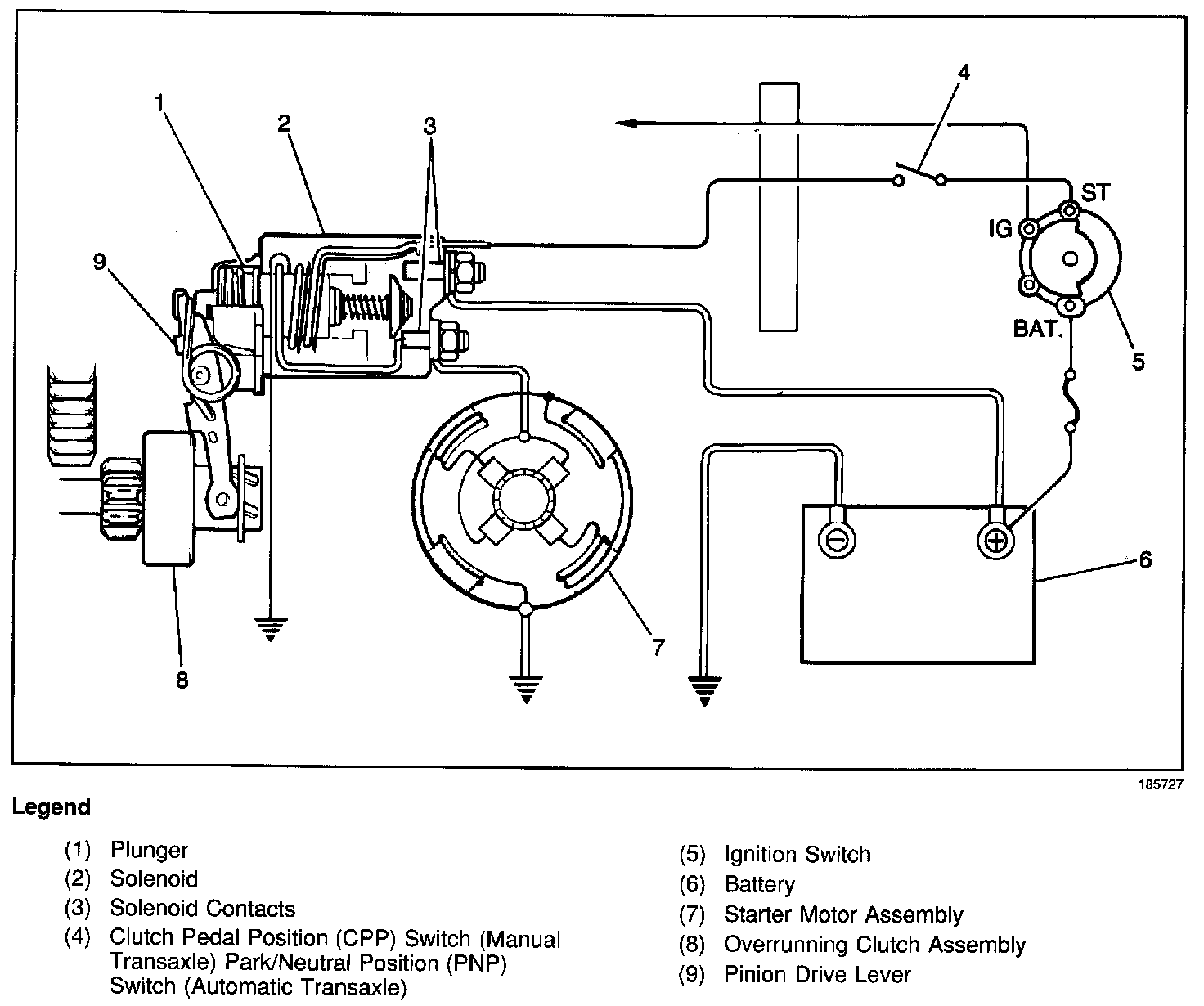

Vehicles equipped with manual transaxle utilize conventional starter motors which consist of a yoke, an armature assembly, an overrunning clutch assembly, a solenoid, a commutator end cover, a brush holder, and pinion drive lever.
