Timing Belt Alignment Marks

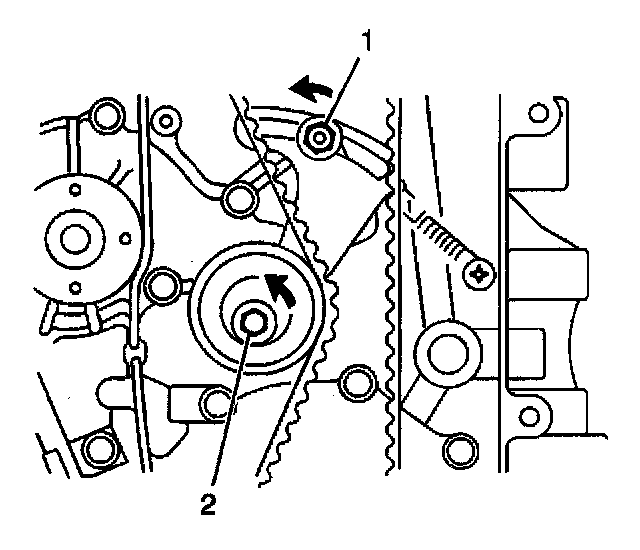

Ensure that you align the mark on the camshaft timing belt pulley (2) with the V on the inside of the timing belt cover (1).

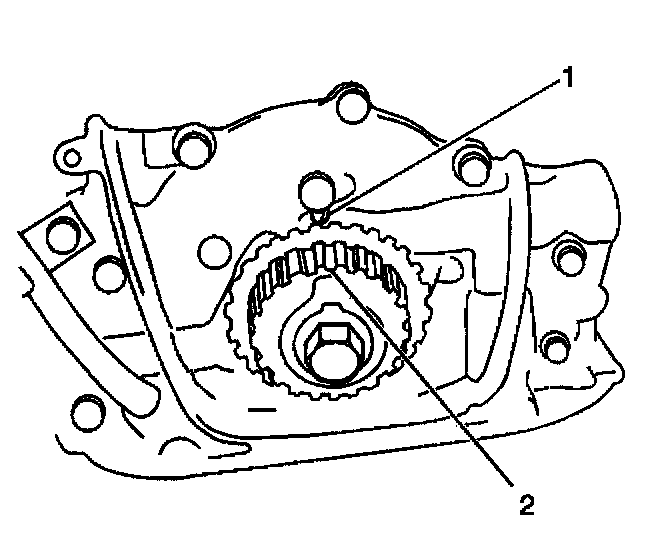

Ensure that the punch mark on the crankshaft timing belt pulley (2) is aligned with the arrow mark on the oil pump case (1).
Match the arrow mark on the timing belt with the rotating direction of the crankshaft, when installing the timing belt.
