Front Side Door Window Channel Replacement




Front Side Door Window Channel Replacement

Removal Procedure




1. Remove the front door window. Refer to Front Side Door Window Replacement (4 Door) (Front Side Door Window Replacement (4 Door))Front Side Door Window Replacement (2 Door) (Front Side Door Window Replacement (2 Door)).

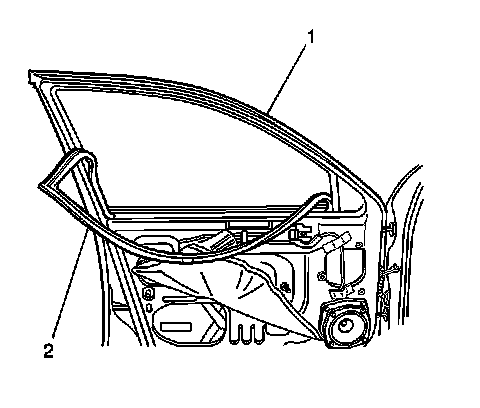

2. Remove the window weather strip (2) from the front door (1).

Installation Procedure




1. Install the window weather strip (2) to the front door (1).
2. Install the front door window. Refer to Front Side Door Window Replacement (4 Door) (Front Side Door Window Replacement (4 Door))Front Side Door Window Replacement (2 Door) (Front Side Door Window Replacement (2 Door)).
