Underhood Fuse Block:

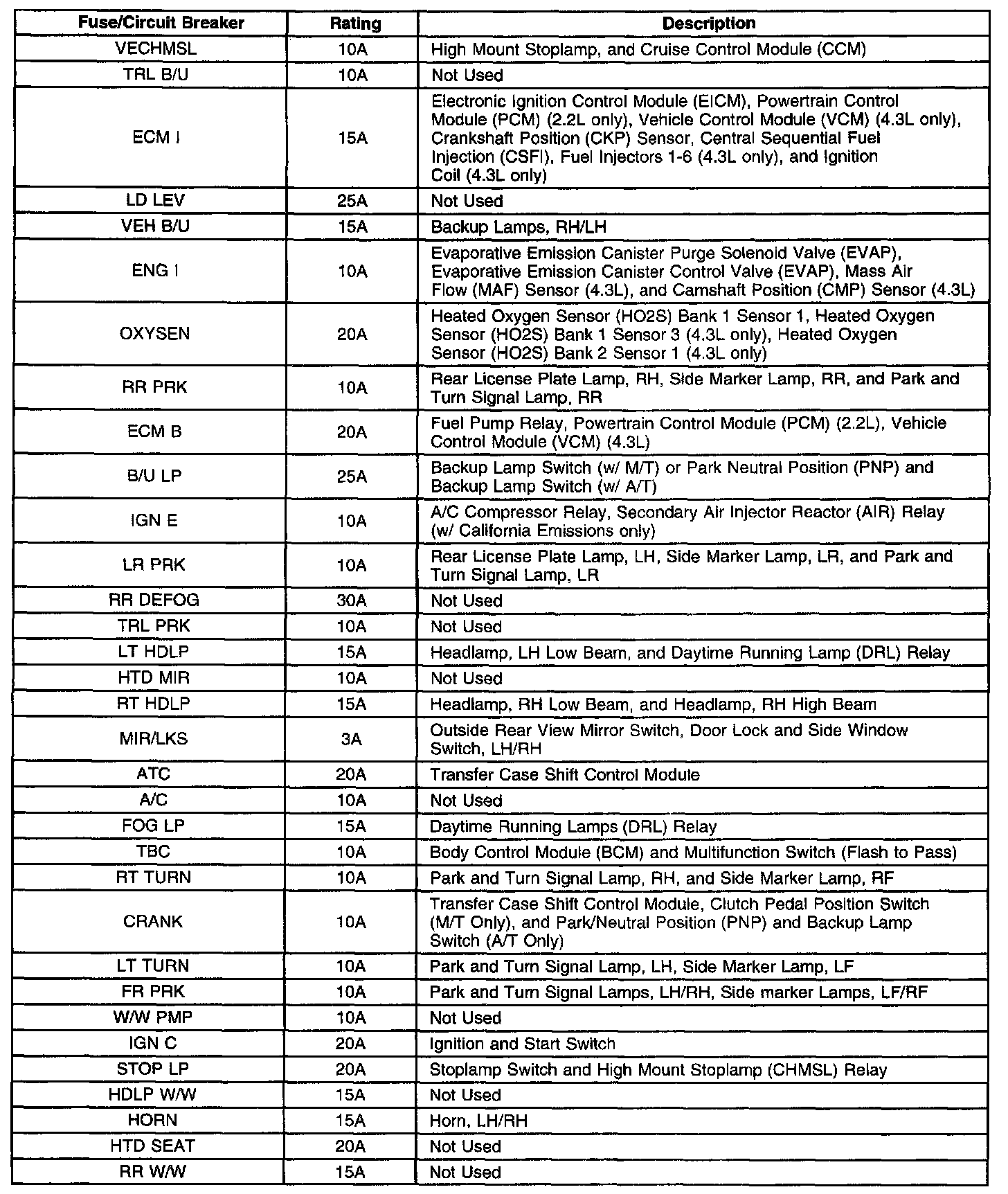

Underhood Fuse Block Details: Base Pickup (Part 1 Of 3):

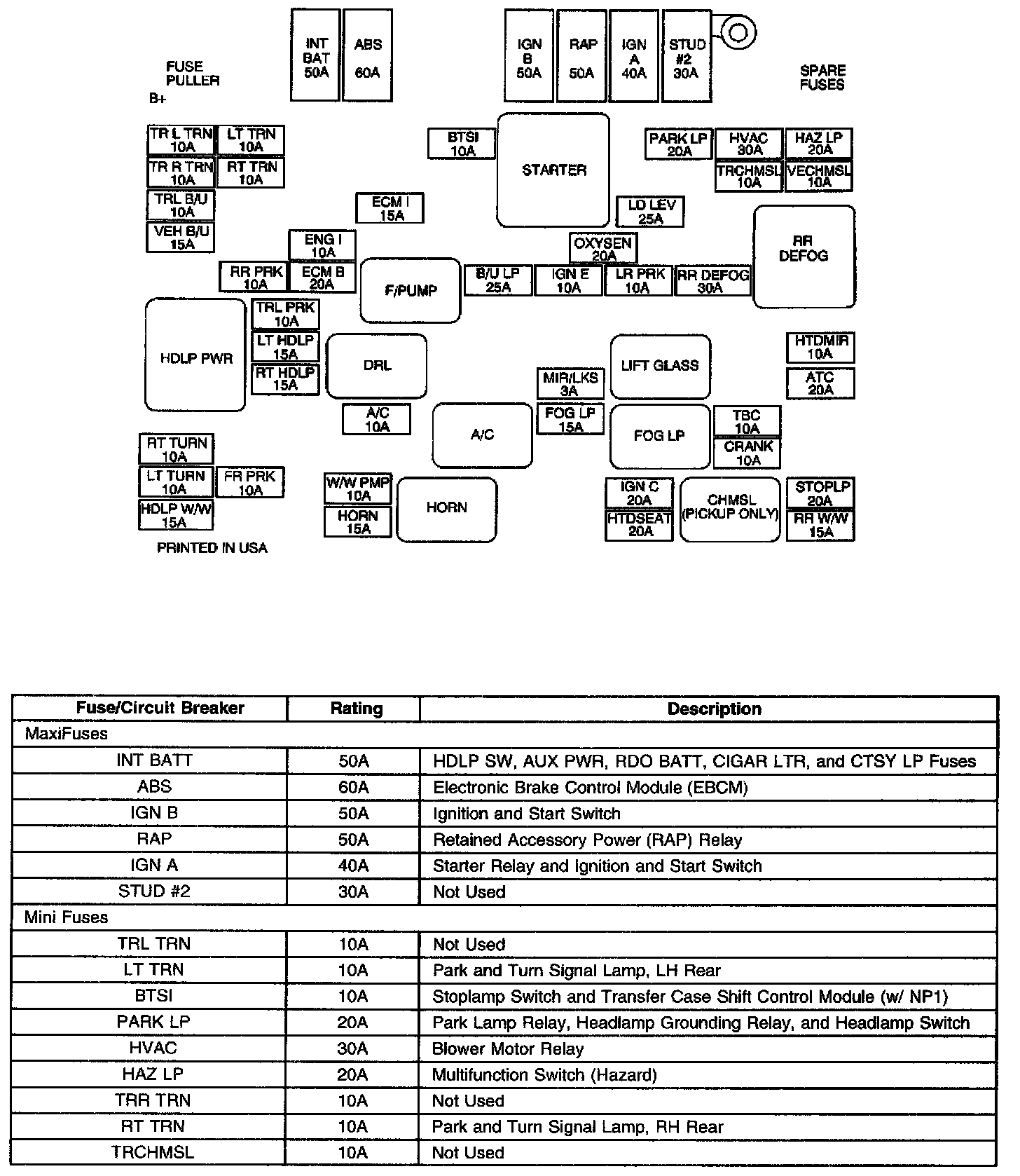

Underhood Fuse Block Details: Base Pickup (Part 2 Of 3):

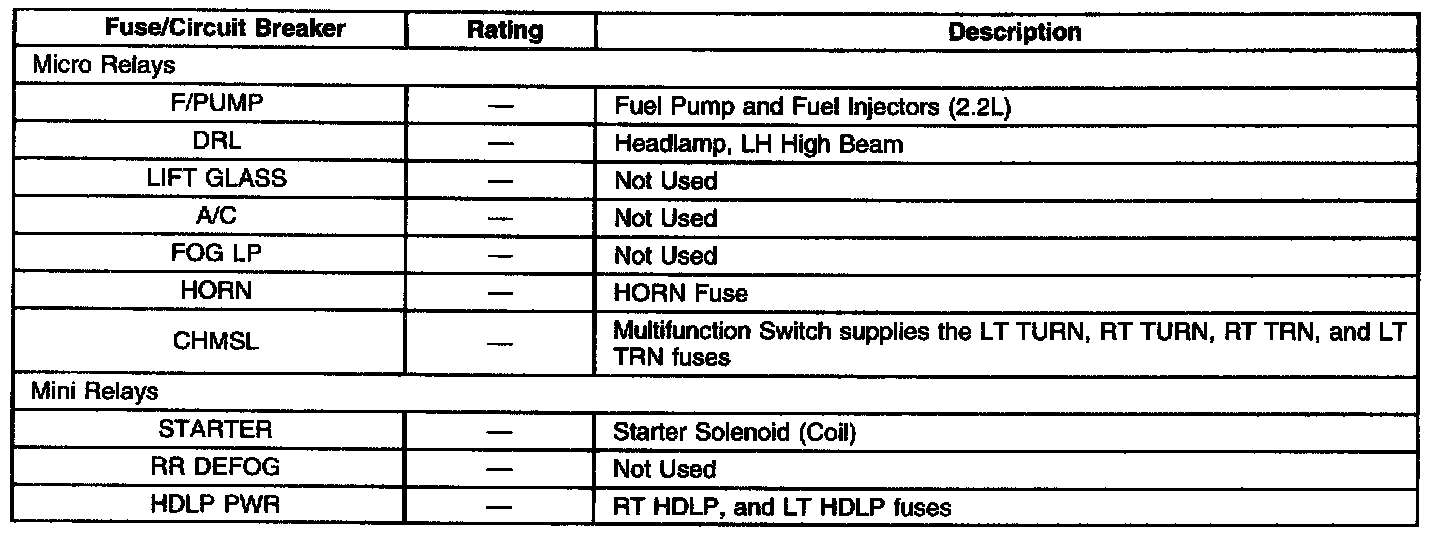

Underhood Fuse Block Details: Base Pickup (Part 3 Of 3):
