Air Temperature Sensor ( Ambient / Intake ): Service and Repair
REMOVAL PROCEDURE 1.
Turn OFF the ignition.
2.

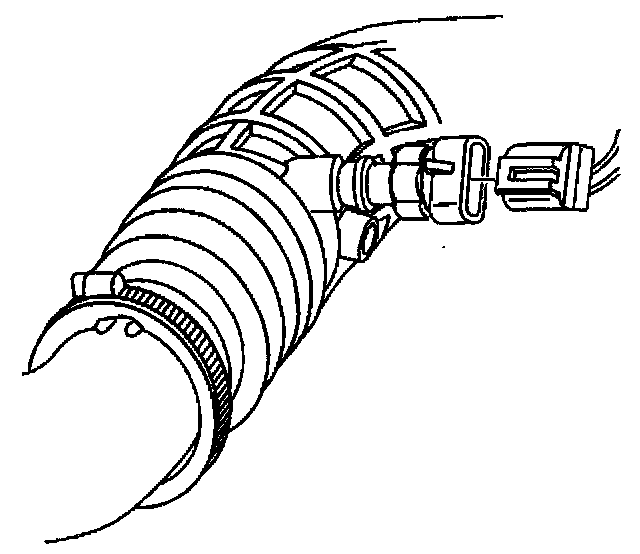

Remove the Intake Air Temperature
(IAT) electrical connector.
3.

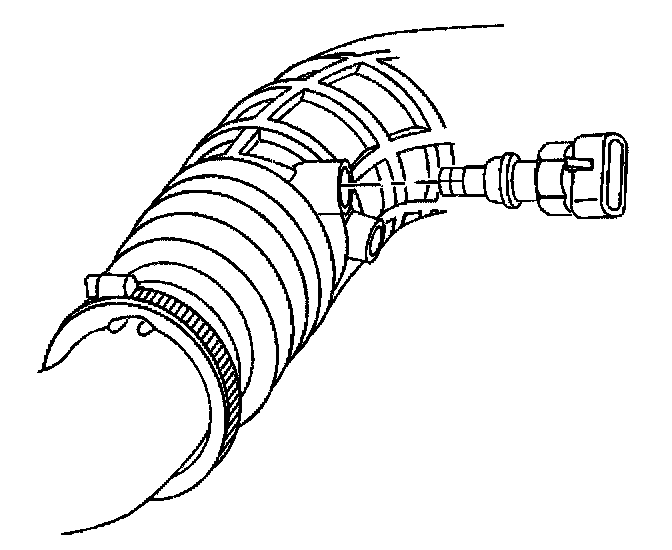

Remove the AT sensor.
INSTALLATION PROCEDURE 1.
Install the IAT sensor into the intake air duct.
2.
Install the IAT sensor electrical connector.
