AIR Pump Relay
AIR Pump Relay

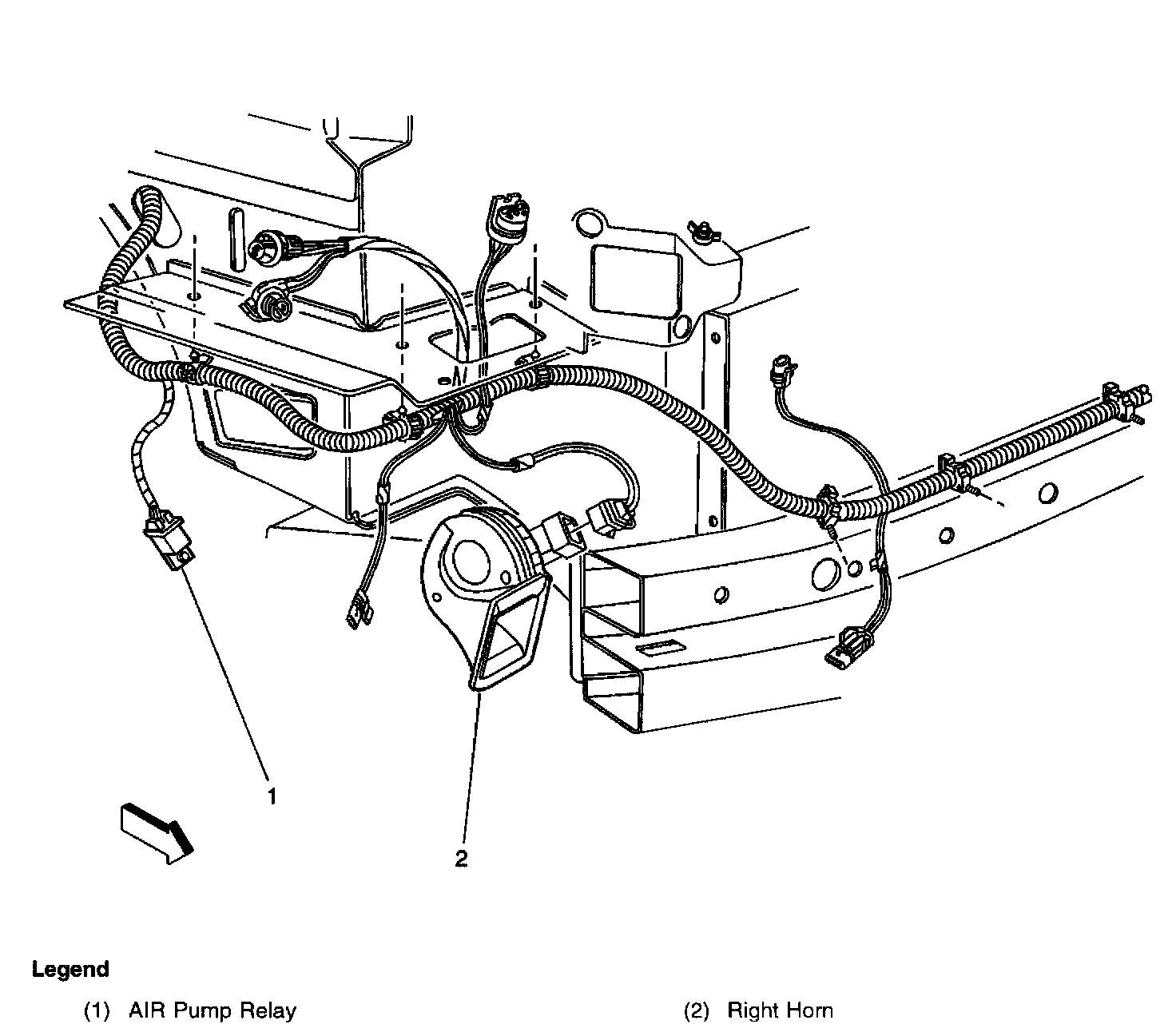

Locations View:
Forward lamp harness, right side of the engine compartment, rearward of the Horn
