Heater-A/C Control Connector C1 (Blower Motor Switch)

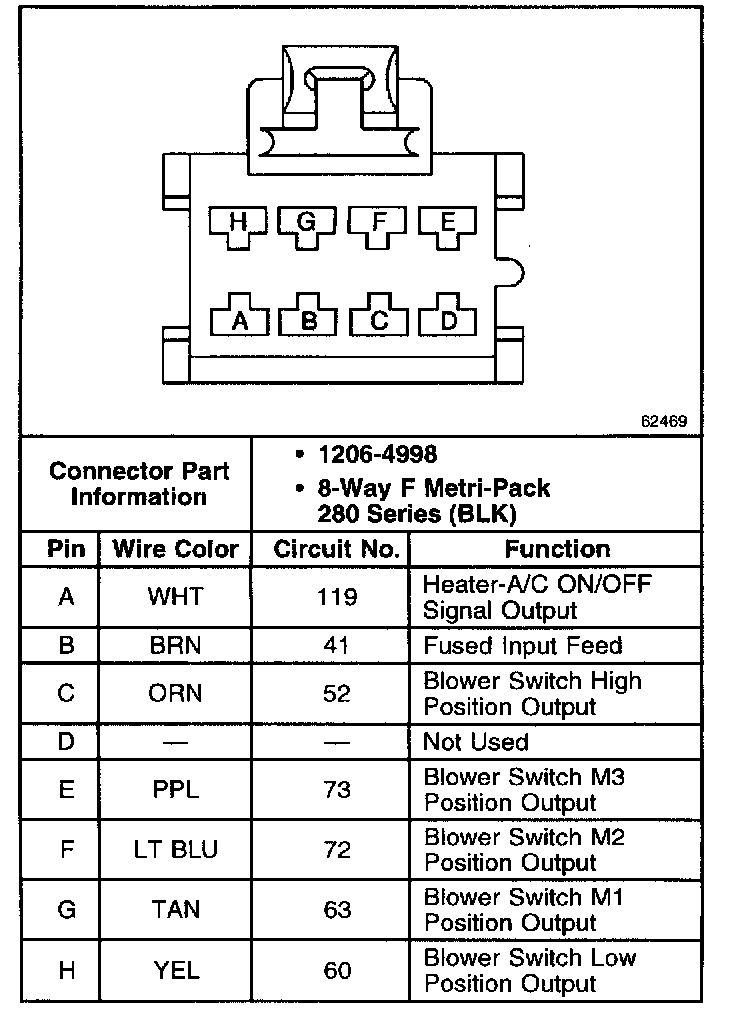

Heater - A/C Control Connector C1 (Blower Motor Switch):
