Operation CHARM: Car repair manuals for everyone.
Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Relay Center(Domestic)

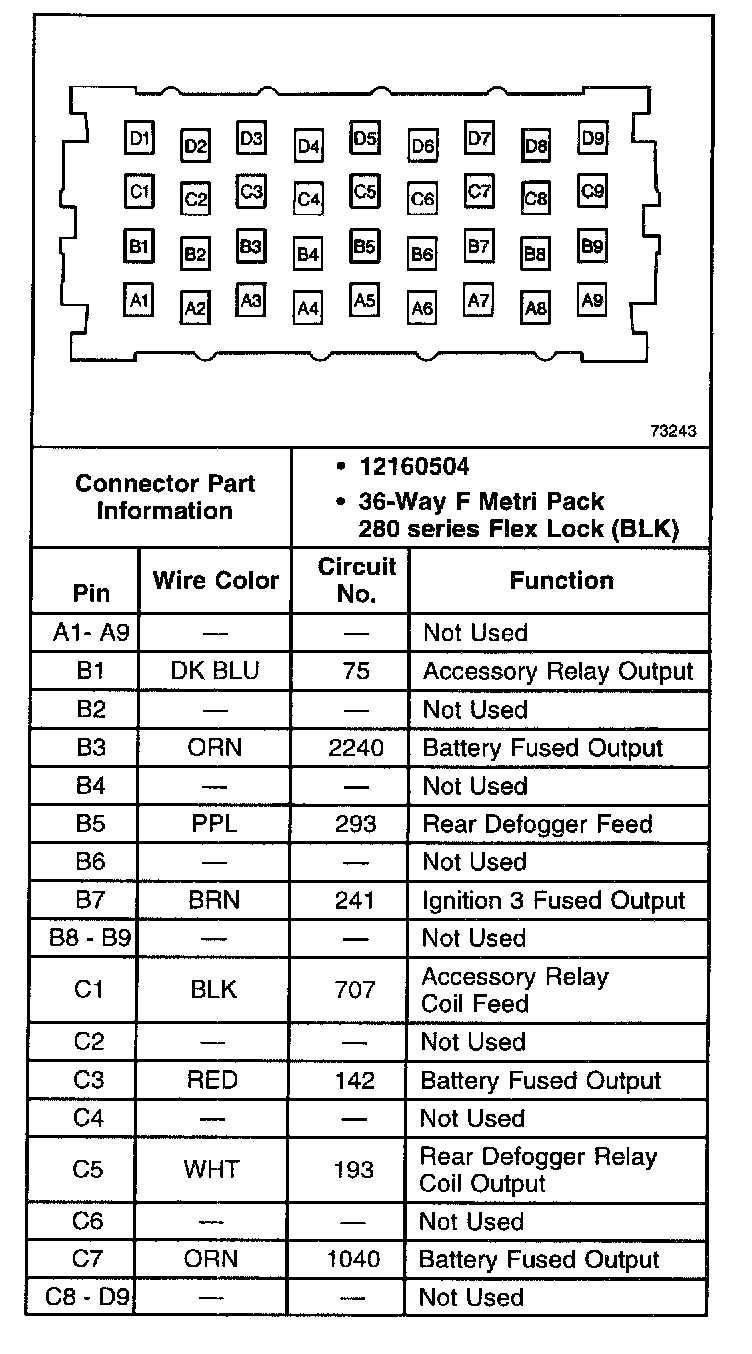

Relay Center(Domestic)

Relay Center(Domestic):
