Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Relay Center(Export)

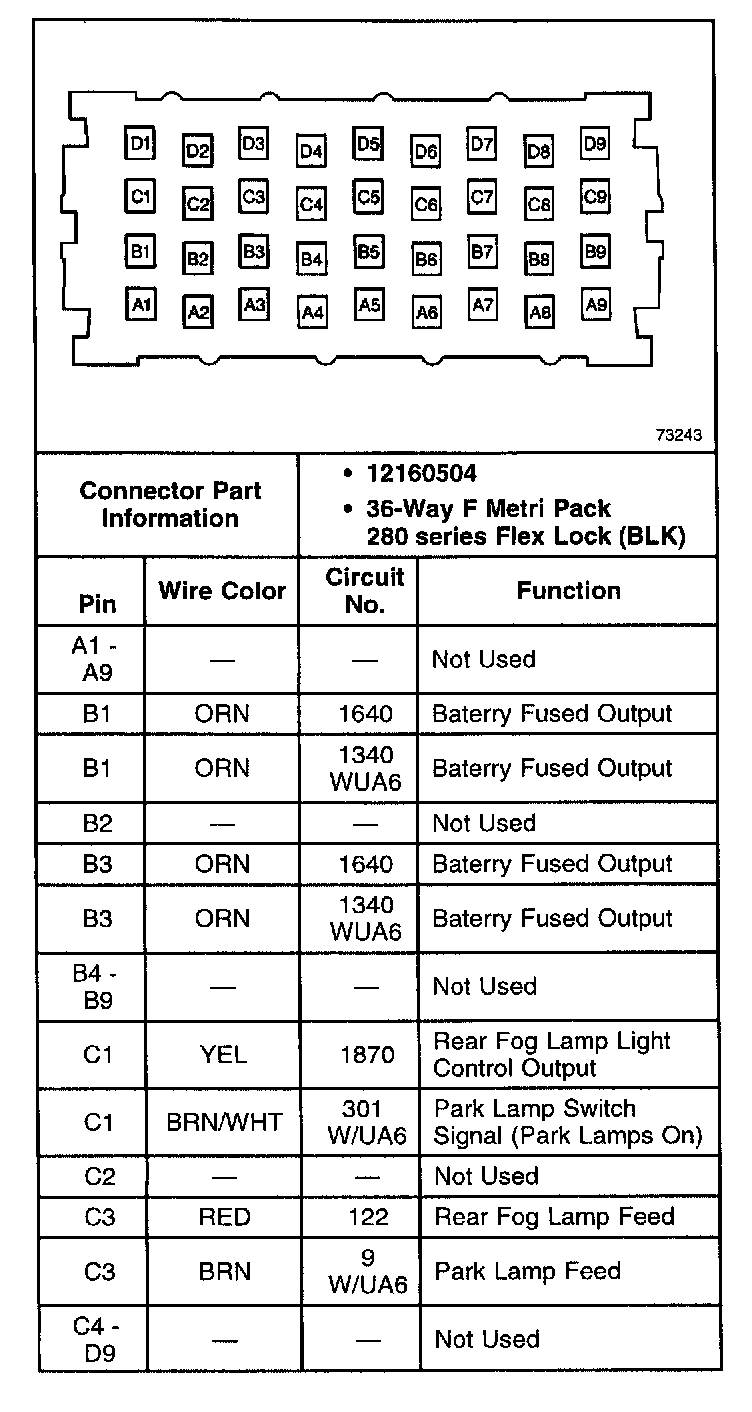

Relay Center(Export)

Relay Center(Export):
