Home >> Chevrolet >> 2000 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> LH

LH

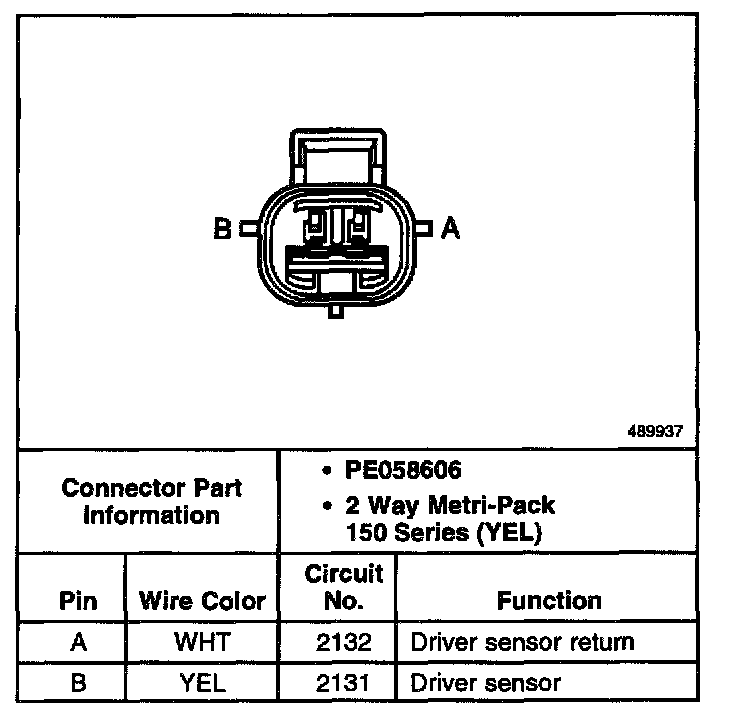

Inflatable Restraint Side Impact Sensor (SIS) (LH):
