Engine Lubrication: Service and Repair

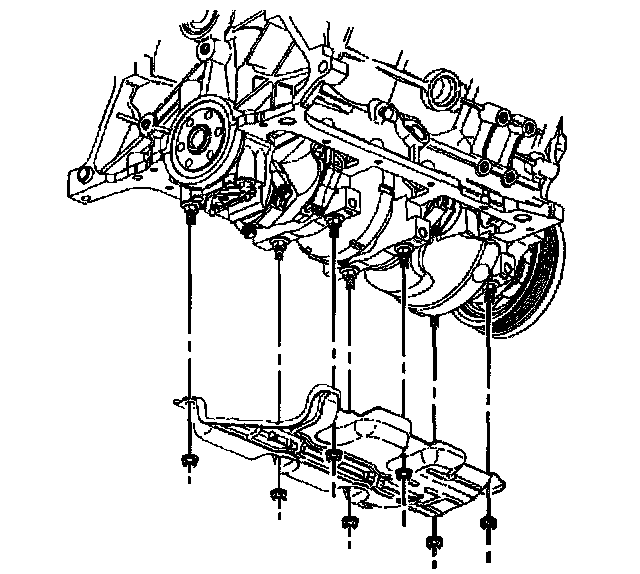

Removal Procedure





1. Remove the oil pan. Refer to Oil Pan Replacement.
2. Remove the crankshaft oil deflector nuts.
3. Remove the crankshaft oil deflector.

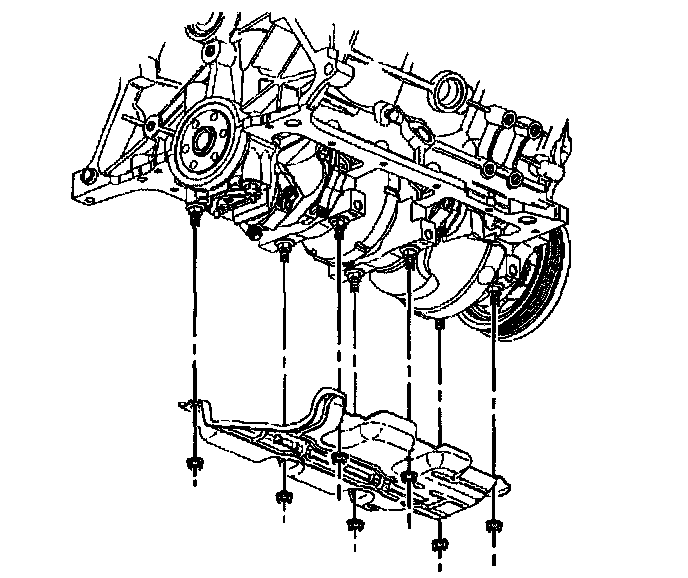

Installation Procedure





1. Install the crankshaft oil deflector.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the crankshaft oil deflector nuts.
^ Tighten the crankshaft oil deflector nuts to 25 Nm (18 ft. lbs.).
3. Install the oil pan. Refer to Oil Pan Replacement.
