Courtesy Lamp: Service and Repair

REMOVAL PROCEDURE

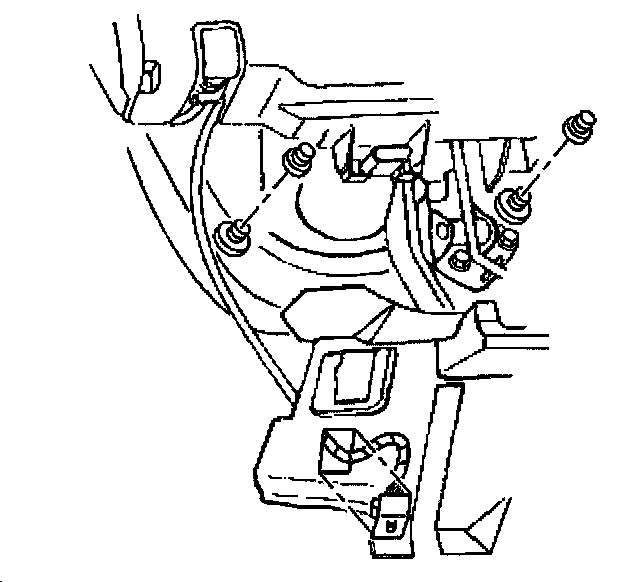

1. Remove the left instrument panel insulator.

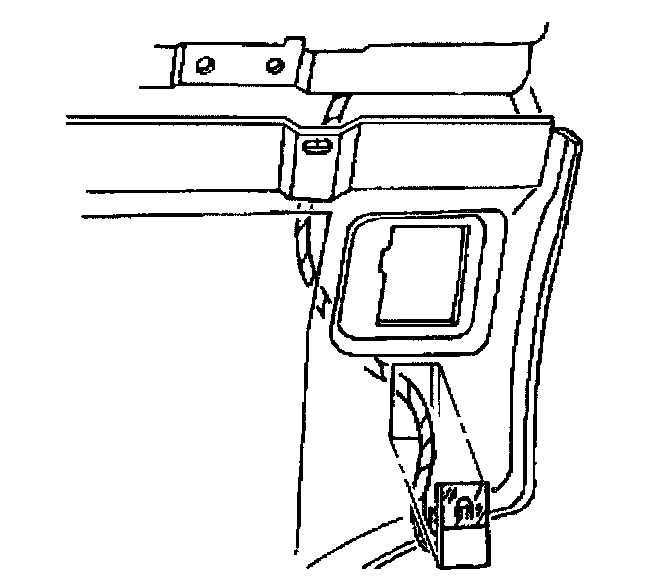

2. Remove the right instrument panel insulator.
3. Remove the right instrument panel courtesy lamp from the instrument panel.




4. Remove the left instrument panel courtesy lamp from the instrument panel.

INSTALLATION PROCEDURE




1. Install the right instrument panel courtesy lamp to the instrument panel insulator.




2. Install the left instrument panel courtesy lamp to the instrument panel insulator.
3. Install the left instrument panel insulator.
4. Install the right instrument panel insulator.
