Chevrolet
>>
2000
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>

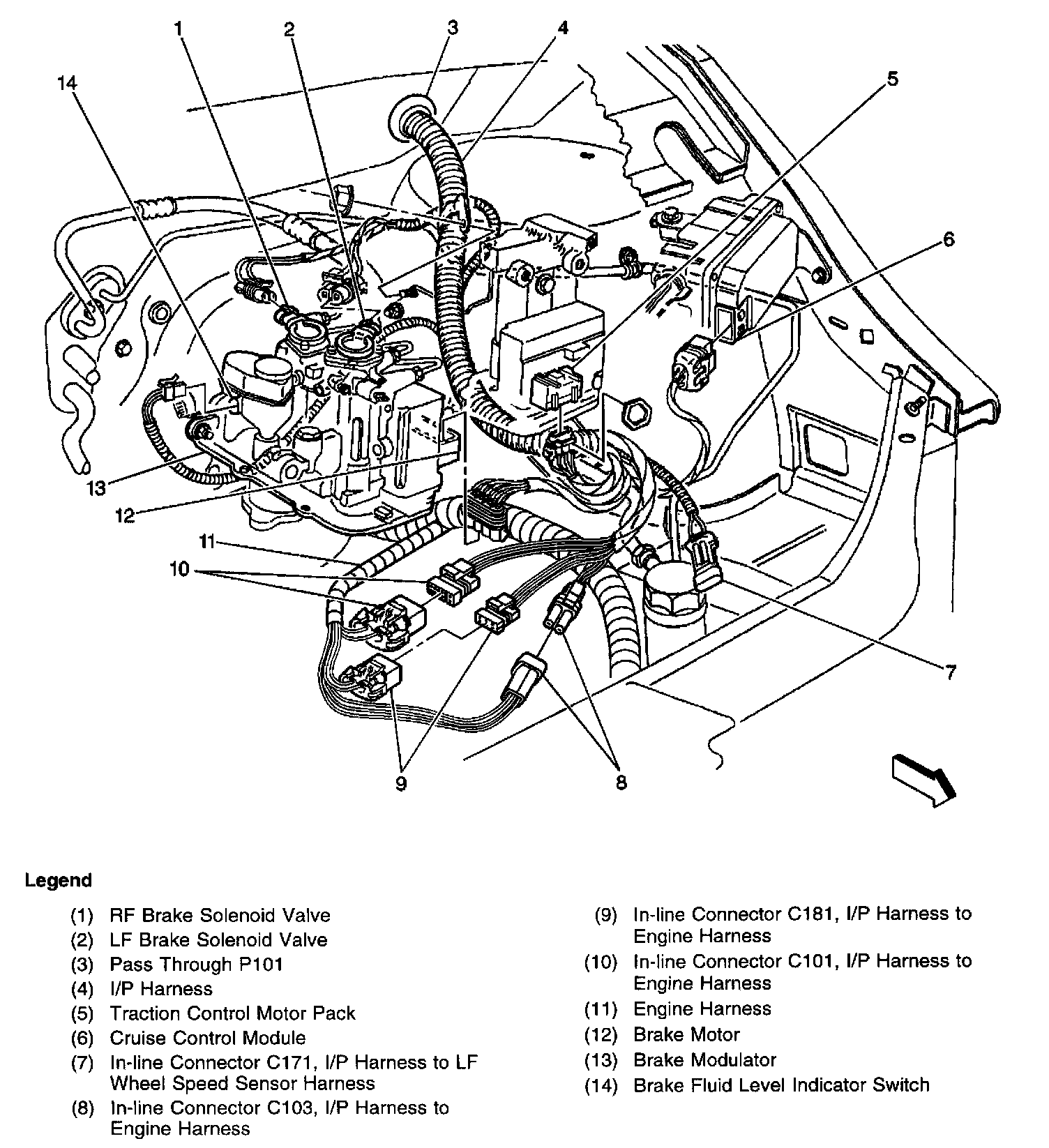

Left Side Of Engine Compartment
Left Side Of Engine Compartment
Harness Routing Views (LH Side Of Engine Compartment:
