Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Instrument Panel Fuse Block
Instrument Panel Fuse Block

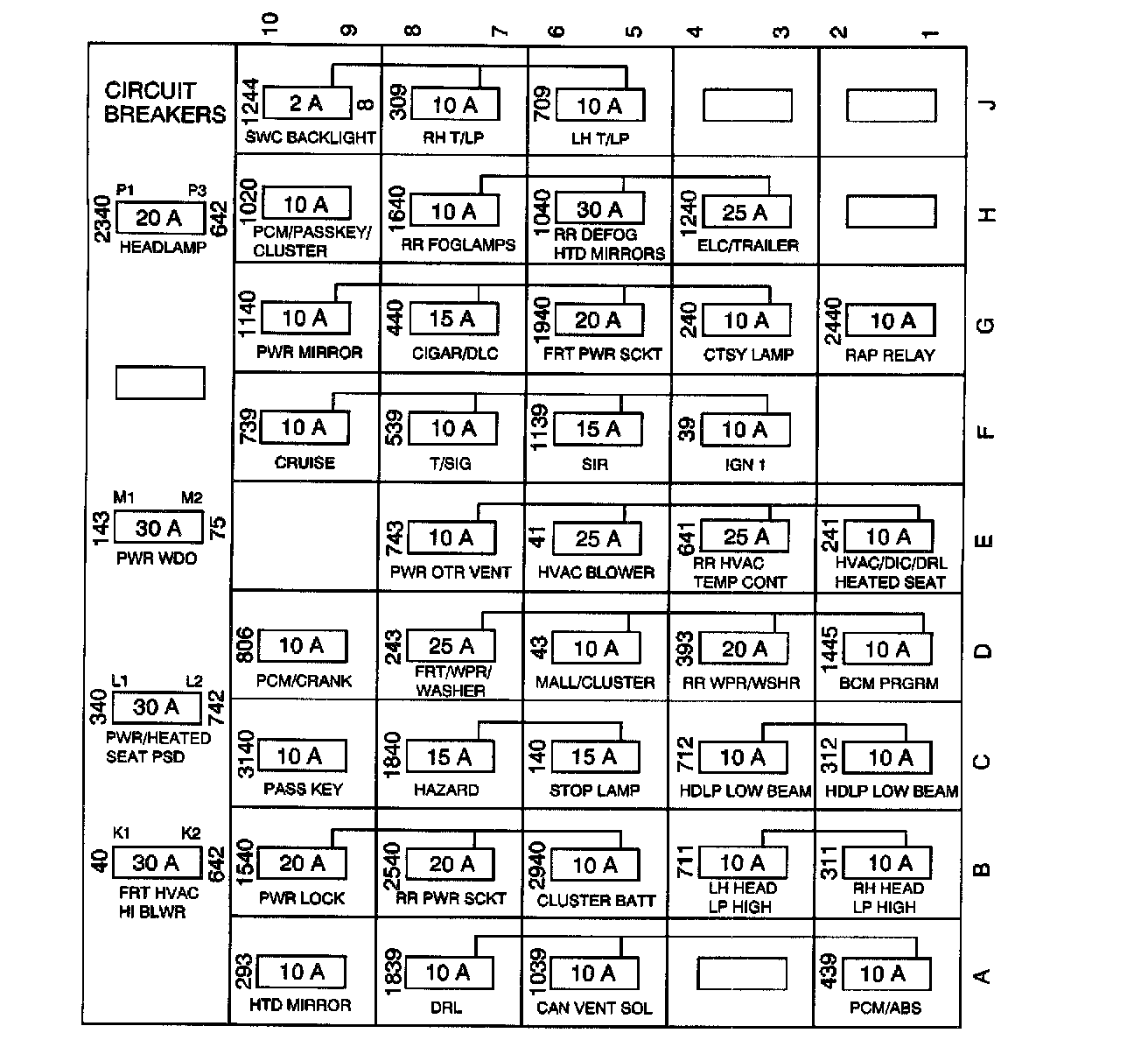

Instrument Panel Fuse Block:
Fuse Block Application Table (Part 1 Of 2):
Fuse Block Application Table (Part 2 Of 2):
