Negative: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in service Precautions.




1. Record all of the vehicle preset radio stations (if applicable).
^ For Chevrolet and Oldsmobile vehicles, refer to Radio/Audio System Operation (Chevrolet, Oldsmobile) or Radio/Audio System Operation (Export) or Radio/Audio System Operation (Pontiac) in Entertainment.
^ For Pontiac vehicles, refer to Radio/Audio System Operation (Chevrolet, Oldsmobile) or Radio/Audio System Operation (Export) or Radio/Audio System Operation (Pontiac) in Entertainment.
2. Turn off all the lamps and accessories.
3. Turn the ignition OFF.

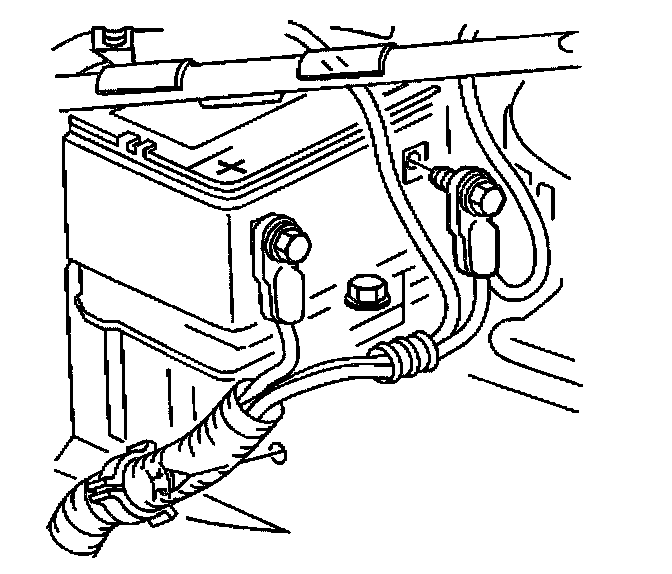

4. Remove the battery ground (negative) cable and bolt from the battery.

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.




1. Install the battery ground (negative) cable and bolt to the battery.

Tighten
Tighten the battery terminal bolt to 16 N.m (12 lb ft).

2. Set the clock to the current time and program the customer's preferred radio stations.
^ For Chevrolet and Oldsmobile vehicles, refer to Radio/Audio System Operation (Chevrolet, Oldsmobile) or Radio/Audio System Operation (Export) or Radio/Audio System Operation (Pontiac) in Entertainment.
^ For Pontiac vehicles, refer to Radio/Audio System Operation (Chevrolet, Oldsmobile) or Radio/Audio System Operation (Export) or Radio/Audio System Operation (Pontiac) in Entertainment.
