Engine Flywheel Replacement

Removal Procedure





1. Remove the automatic transaxle. Refer to Transmission Replacement in Transmission and Drivetrain.

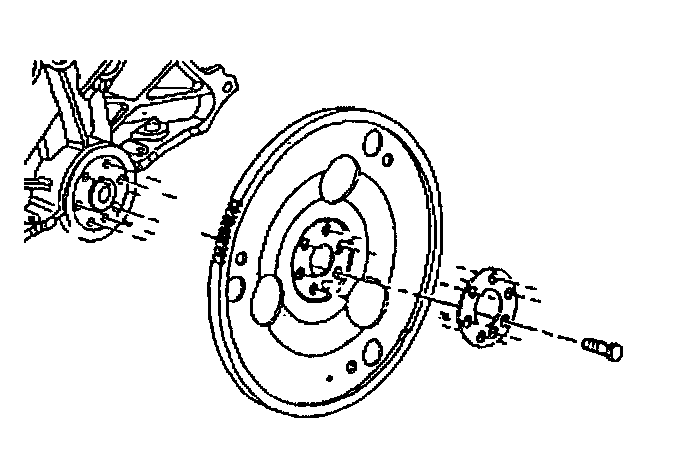

2. Remove the engine flywheel.
3. Clean the engine flywheel bolt threads and bolt holes.
4. Clean and inspect the engine flywheel. Refer to Engine Flywheel Clean and Inspect in Engine / Service and Repair / Unit Repair.

Installation Procedure

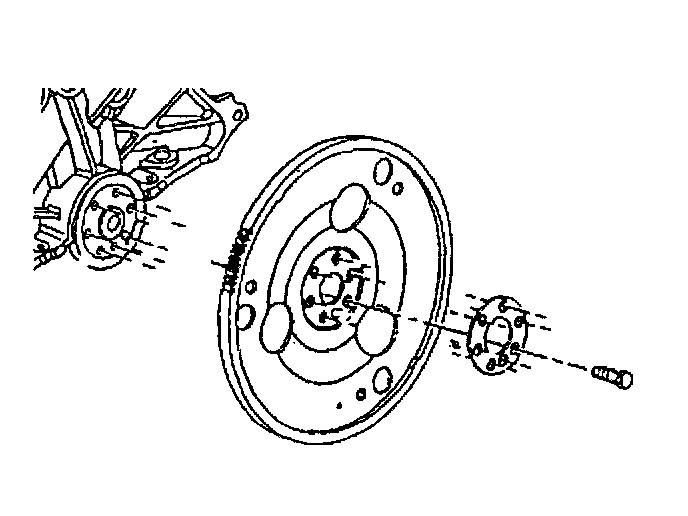

1. Install the engine flywheel. Refer to Engine Flywheel Installation in Engine / Service and Repair / Unit Repair.
2. Install the automatic transaxle. Refer to Transmission Replacement in Transmission and Drivetrain.
