Chevrolet
>>
2001
>>
Astro Van 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Switch
Wiper Switch

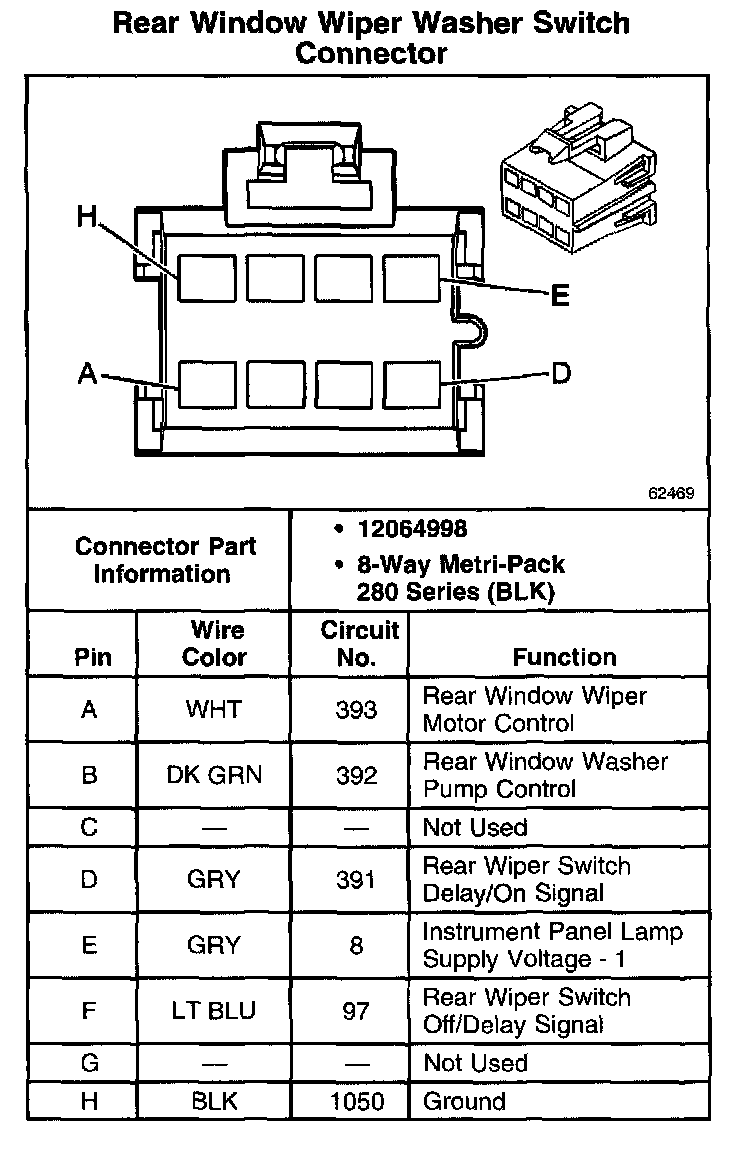

Rear Window Wiper Washer Switch Connector:
