Ash Tray: Service and Repair

Ashtray Replacement

Removal Procedure




1. Remove the ashtray from the instrument panel (IP) by depressing the tab and sliding the ashtray rearward.




2. Remove the lower IP trim panel.

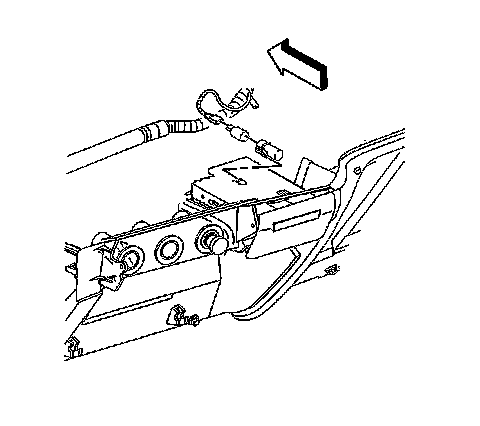

3. Remove the ashtray lamp wiring harness from the ashtray housing.




4. Remove the screws holding the ashtray housing to the rear of the IP lower trim panel.
5. Remove the ashtray housing from the lower trim housing.

Installation Procedure

1. Install the ashtray housing to the lower IP trim panel.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the screws holding the ashtray housing to the rear of the IP lower trim panel.

Tighten the ashtray housing screws to 2 N.m (18 lb in).




3. Connect the ashtray lamp wiring harness to the ashtray housing.




4. Install the lower IP trim panel.




5. Insert the ashtray to the IP by depressing the tab and sliding the ashtray forward.
