Engine

The eighth character in the Vehicle Identification Number (VIN) identifies the engine. Adhesive-backed labels attached to the engine, laser etching, or stampings on the engine block indicate the engine unit number/date code. All engines are stamped with a VIN derivative. For added information on VIN derivative, refer to VIN Derivative.

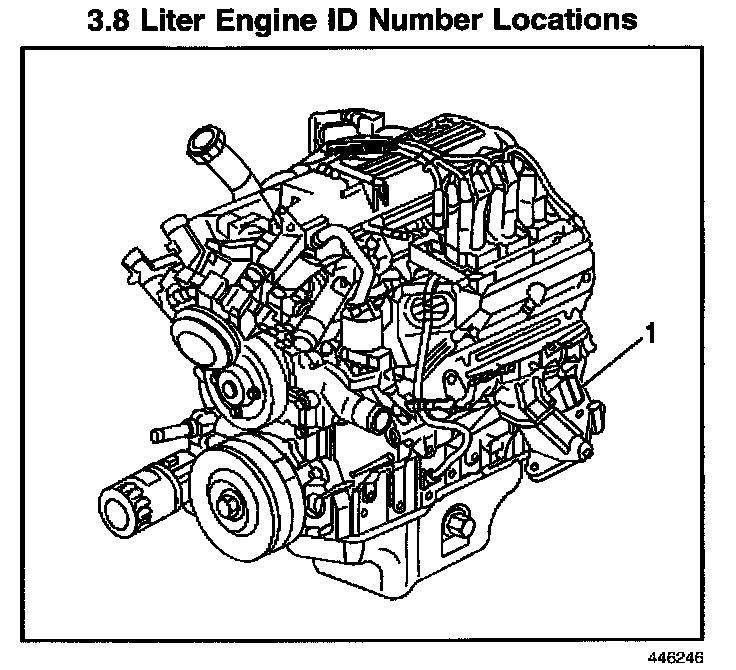

3.8 Liter Engine ID Number Locations

3.8 Liter Engine ID Number Locations:




The primary location of the VIN derivative for the 3.8 L engine is above the starter motor on the engine block (1).

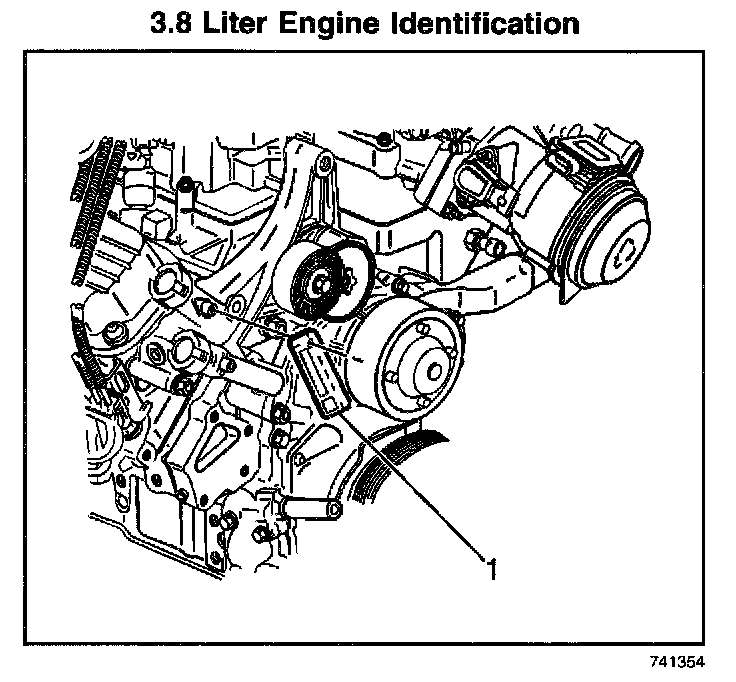

3.8 Liter Engine Identification

3.8 Liter Engine Identification:




The location for the 3.8 Liter engine identification is below the air conditioning compressor on the front of the serpentine belt tensioner bracket.
