HVAC Control Lamp Bulb Replacement
REMOVAL PROCEDURE 1.
Remove the
HVAC control assembly.
2.
Remove the
HVAC control assembly wiring harness.
3.
Remove the

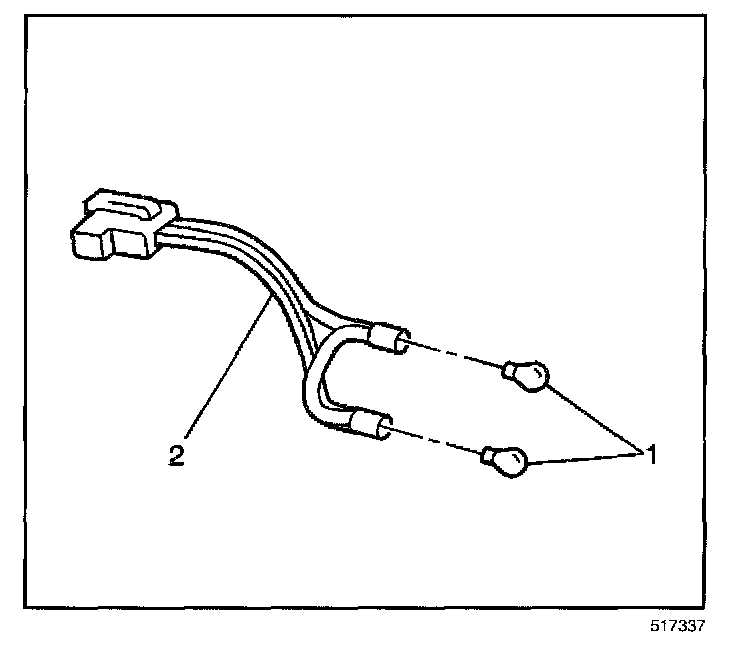

HVAC control assembly lamp bulb (1) from the control lamp harness.
INSTALLATION PROCEDURE 1.
Install a new
HVAC control assembly lamp bulb (1) to the control lamp harness.
2.
Install the
HVAC control assembly wiring harness.
3.
Install the
HVAC control assembly.
