Power Window Switch: Service and Repair
POWER WINDOW SWITCH REPLACEMENTREMOVAL PROCEDURE
IMPORTANT: Protect the trim panel with a rag when prying up the switch to prevent marring the trim panel.
1. Pry up the rear edge of the drivers side switch, the front edge of the passenger side switch.
2. Slide the drivers side switch rearward, the passenger side switch forward, out of the door trim panel.

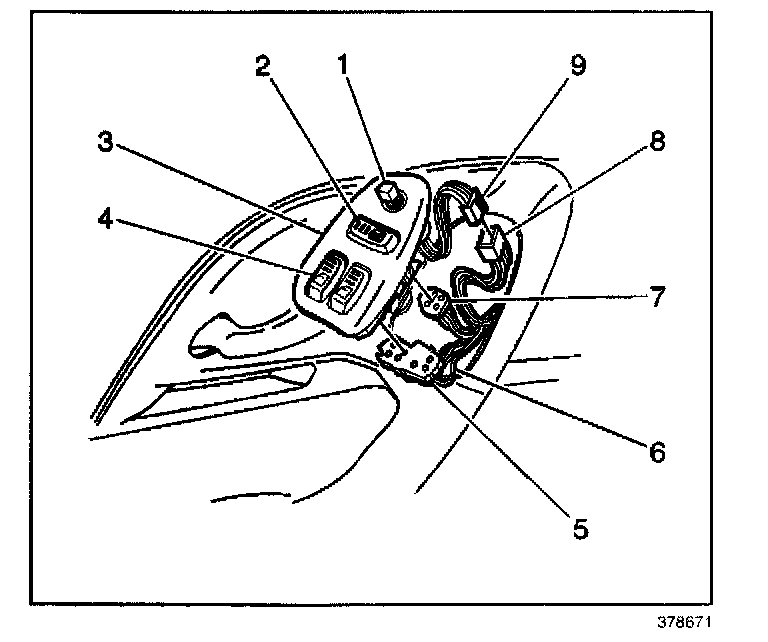

3. Disconnect the electrical connector (5) from the window switches (4).
4. Remove the power window switch (4) from panel.
INSTALLATION PROCEDURE
1. Insert switch assembly into panel.
2. Install the power window switch (4) to the panel.
3. Connect the electrical connector (5) to the switches (4).
4. Insert the front edge of the drivers side switch, the rear edge of the passenger side switch, into the door trim panel.
5. Press the rear edge of the drivers side switch, the front edge of the passenger side switch, into the trim panel to secure.
