Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Steering Pump >> Direct Drive Pump

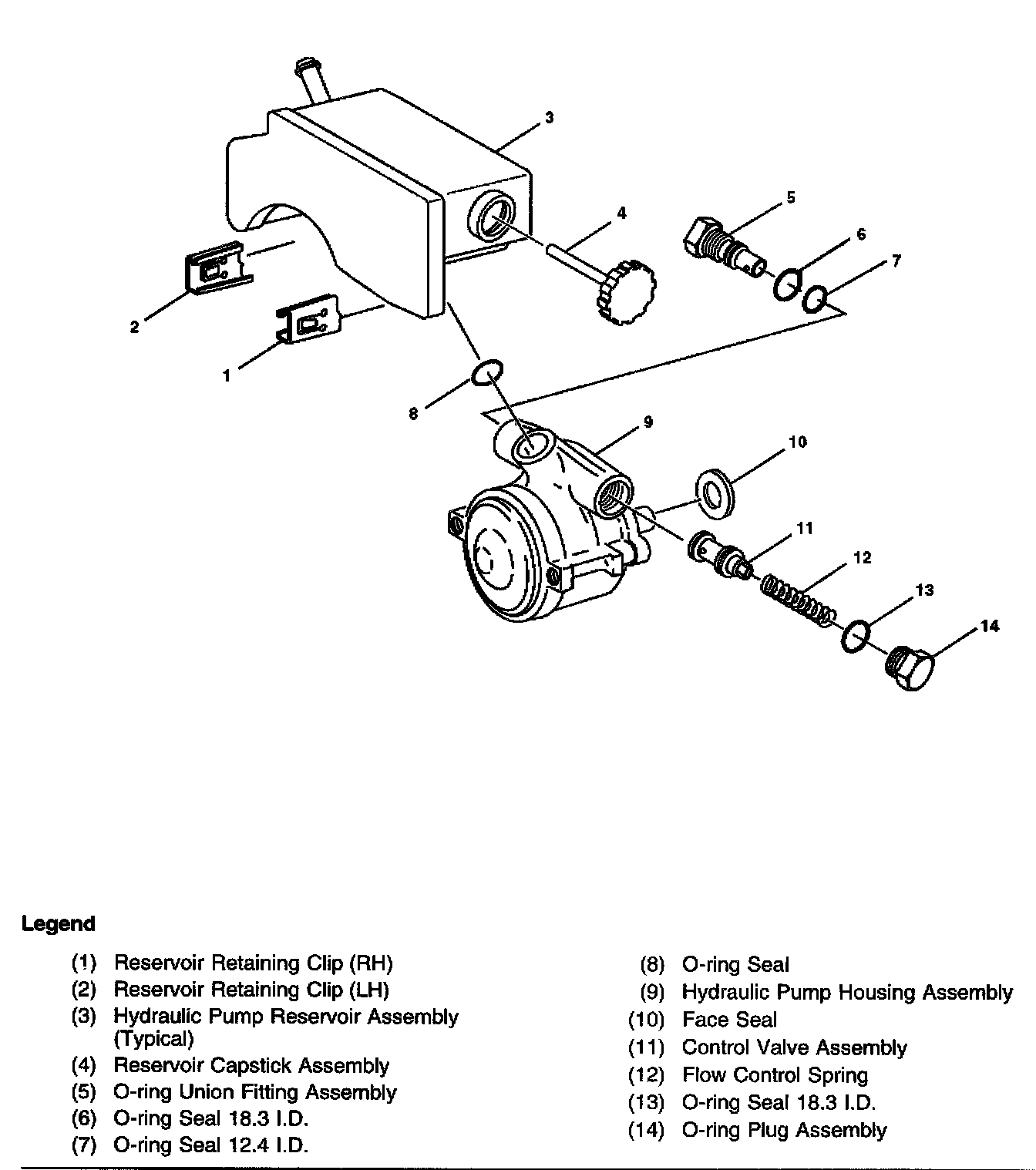

Direct Drive Pump





Power Steering Pump-CB Series
