Home >> Chevrolet >> 2001 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Ignition Switch

Ignition Switch

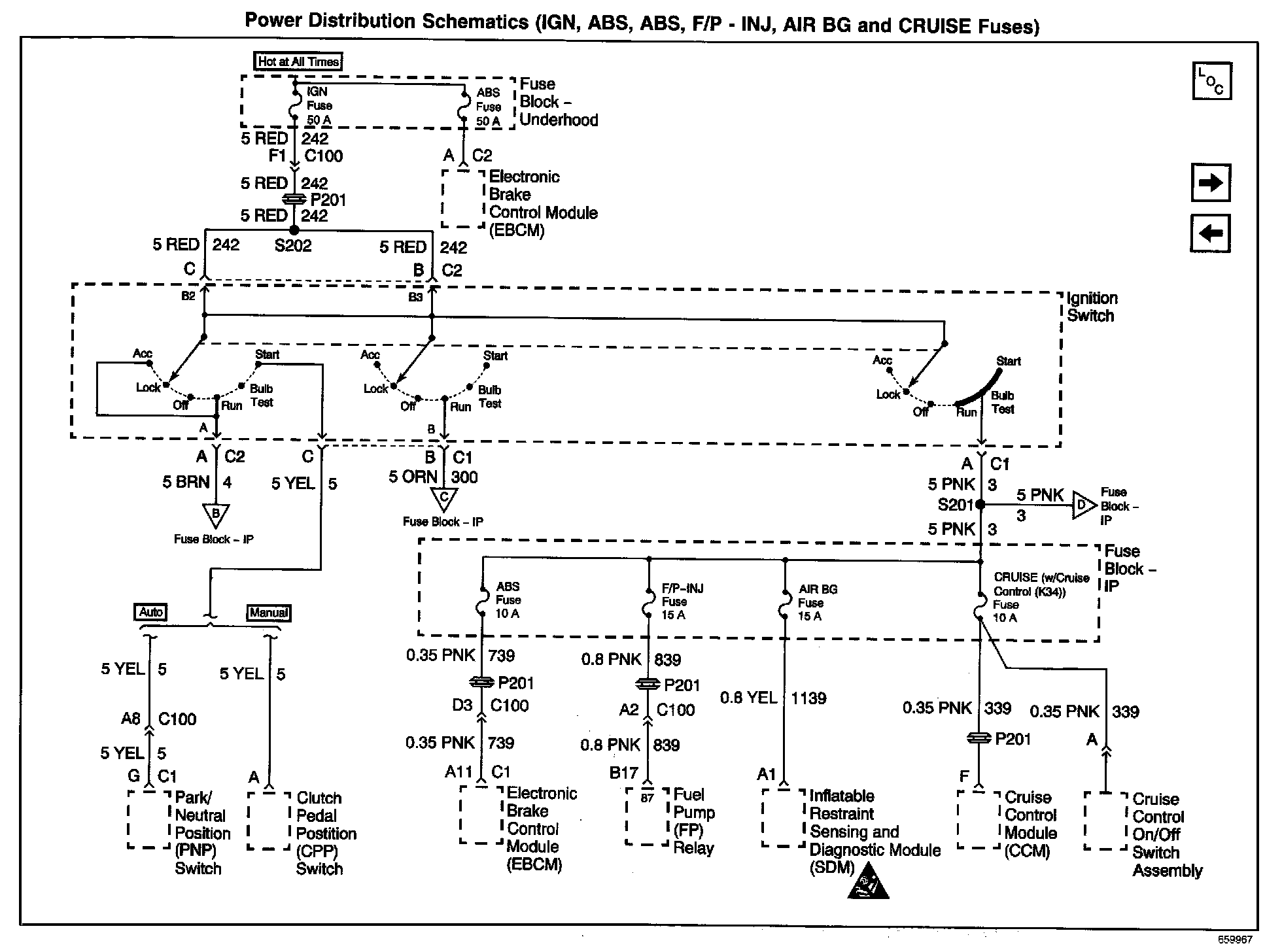

Power Distribution Schematics: IGN, ABS, ABS, F/P - INJ, AIR BG And CRUISE Fuses:
