Home >> Chevrolet >> 2001 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

Door Switch - Driver:

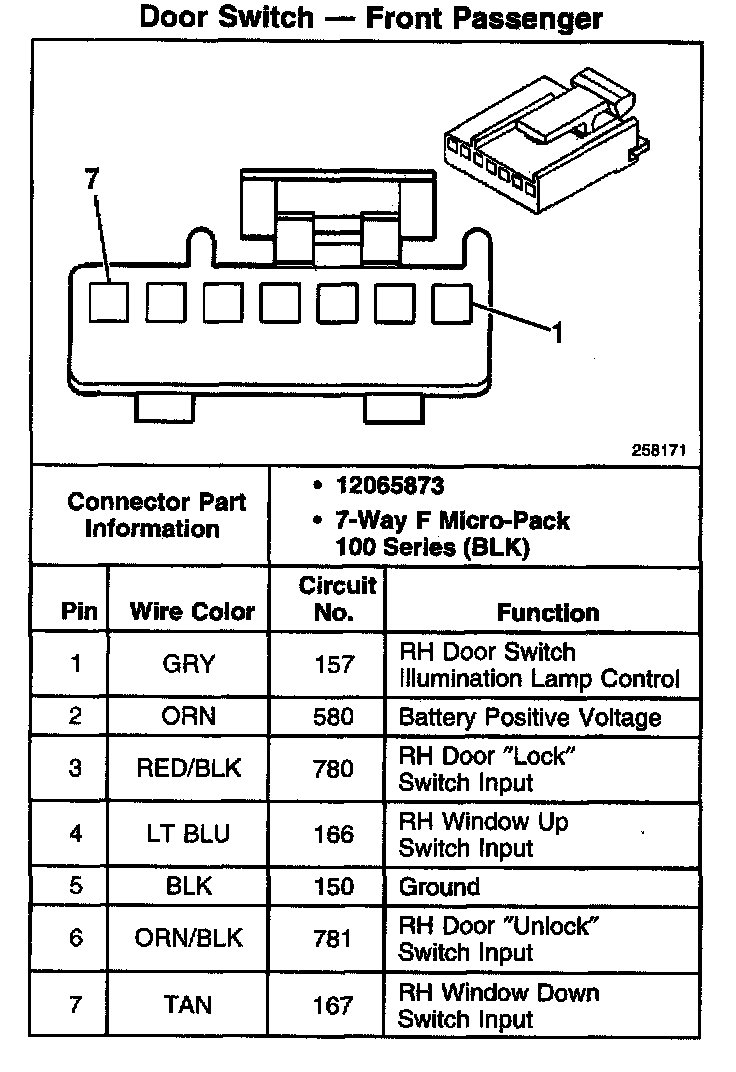

Door Switch - Front Passenger:
