Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>
Headlamp Control Module
>>
Headlamp Door Control Module - C2
Headlamp Door Control Module - C2

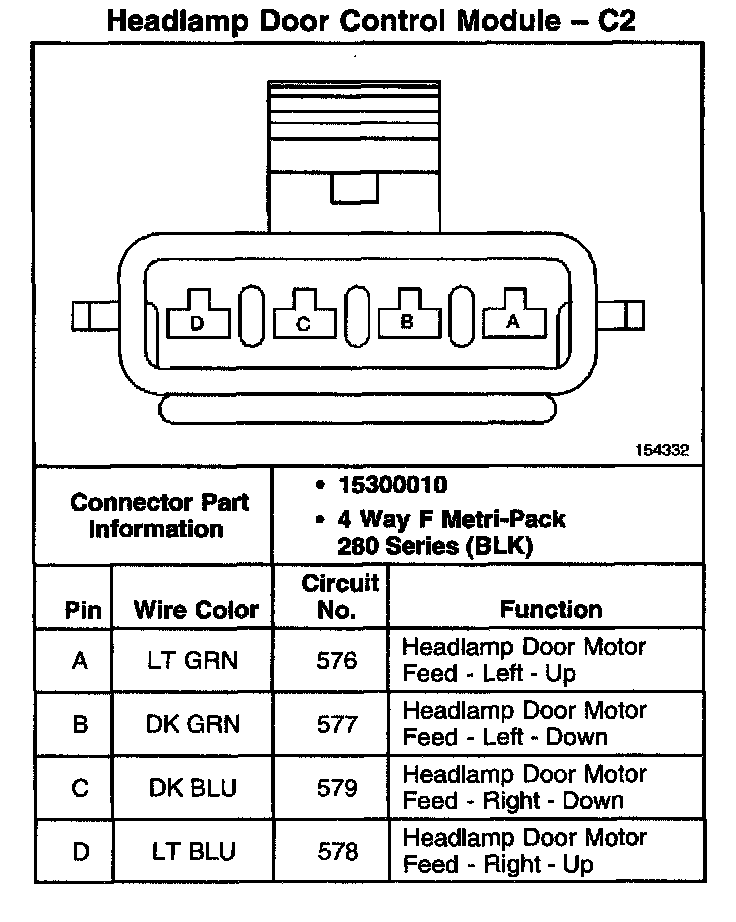

Headlamp Door Control Module - C2:
