Front Wheel Toe Adjustment

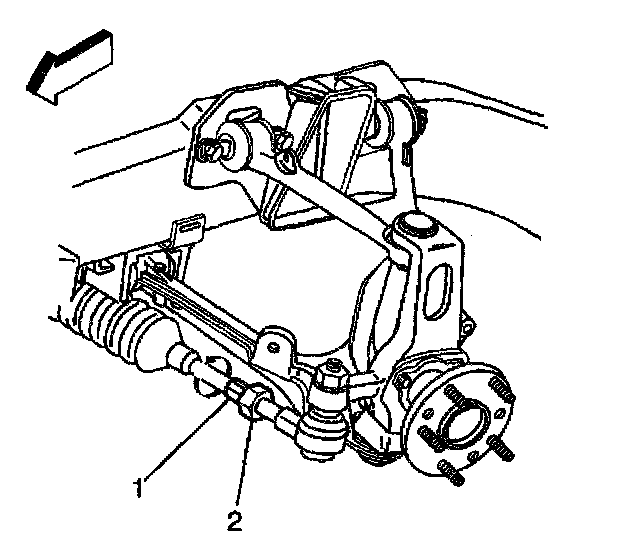

1. Loosen the jam nut on the tie rod (2).
2. Rotate the inner tie rod (1 ) to the required toe specification setting. Refer to Wheel Alignment Specifications.

Notice: Refer to Fastener Notice in Service Precautions.

3. Tighten the jam nut on the tie rod.
- Tighten the front tie rod jam to 68 Nm (50 ft. lbs.).
4. Check the toe setting after tightening.
5. Adjust the toe setting if necessary.
