Cylinder Head Specifications

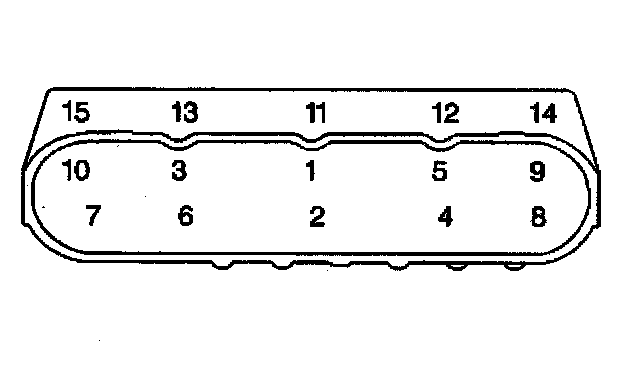

Tighten the M11 cylinder head bolts (1- 10) a first pass in sequence to 30 Nm (22 ft. lbs.).

Tighten the M11 cylinder head bolts (1- 10) a second pass in sequence to 90 degrees using the J 36660-A.

Tighten the M11 cylinder head bolts (1,2,3,4,5,6,7,8) to 90 degrees and the M11 cylinder head bolts (9 and 10) to 50 degrees a final pass in sequence to using the J 36660-A.

Tighten the M6 cylinder head bolts (11,12,13,14,15) to 30 Nm (22 ft. lbs.). Begin with the center bolt (11) and alternating side-to-side, work outward tightening all of the bolts.
