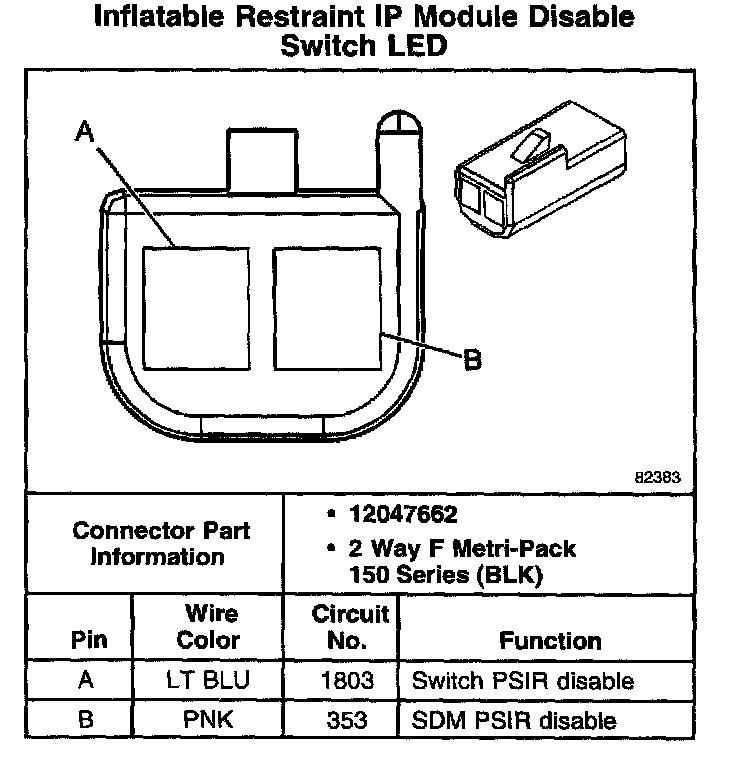

Inflatable Restraint IP Module Disable Switch LED

Inflatable Restraint IP Module Disable Switch LED:
