Ambient Temperature Sensor / Switch HVAC
>>
Air Temperature Sensor - Inside
Air Temperature Sensor - Inside

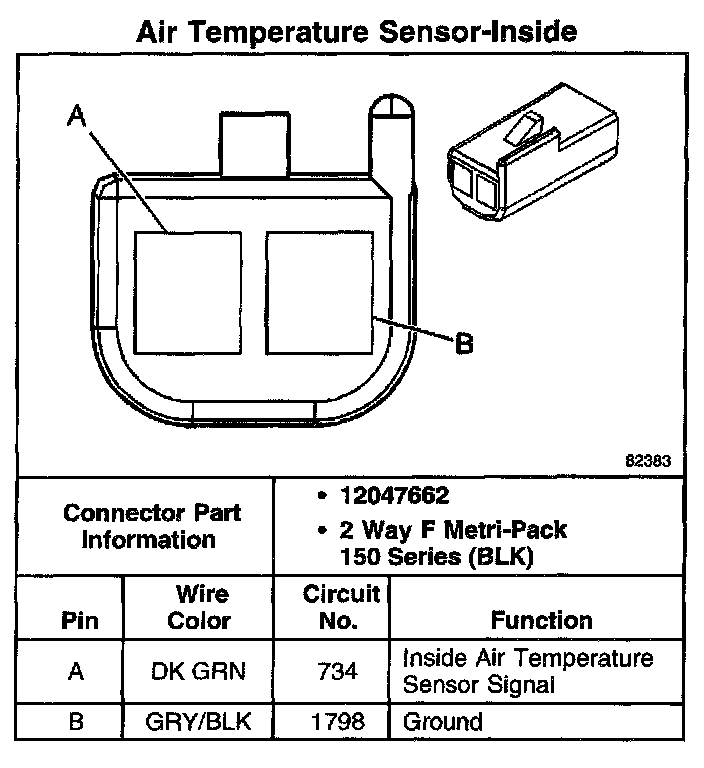

Air Temperature Sensor - Inside:
